PINPOINT TEST A: No Start: Introduction

WARNING: Stop this test at the first sign of a fuel leak and repair as required.

No open flame. No smoking during fuel delivery checks.

Failure to follow these instructions may result in personal injury.

This pinpoint test is intended to diagnose the following:

Fig 1: Throttle Position (TP) Sensor Connector - A

Courtesy of FORD MOTOR CO.

Fig 2: Throttle Position (TP) Sensor Connector - B

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape/Mariner 2.3L, Ranger 2.3L	A	1 3	SIGRTN VREF
All other vehicles	B	3 1	SIGRTN VREF

Fig 3: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - A

Courtesy of FORD MOTOR CO.

Fig 4: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - B

Courtesy of FORD MOTOR CO.

Fig 5: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - C

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, Edge, F-150 4.2L, F-150 4.6L, Focus, MKX, MKZ, Sable, Taurus, Taurus X	A	2 3	ETCRTN ETCREF
Fusion 2.3L, Milan 2.3L	B	3 5	ETCRTN ETCREF
Fusion 3.0L, Milan 3.0L	B	4 5	ETCRTN ETCREF
All other vehicles	C	3 2	ETCRTN ETCREF

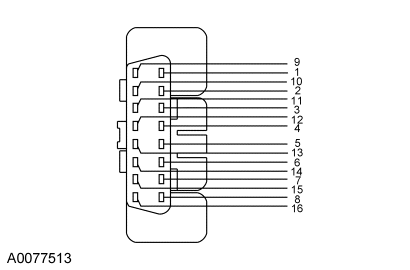

Fig 6: Data Link Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
13	FEPS (Flash EEPROM Programming Signal)
