Powertrain Control Module Connector End View (C175B)

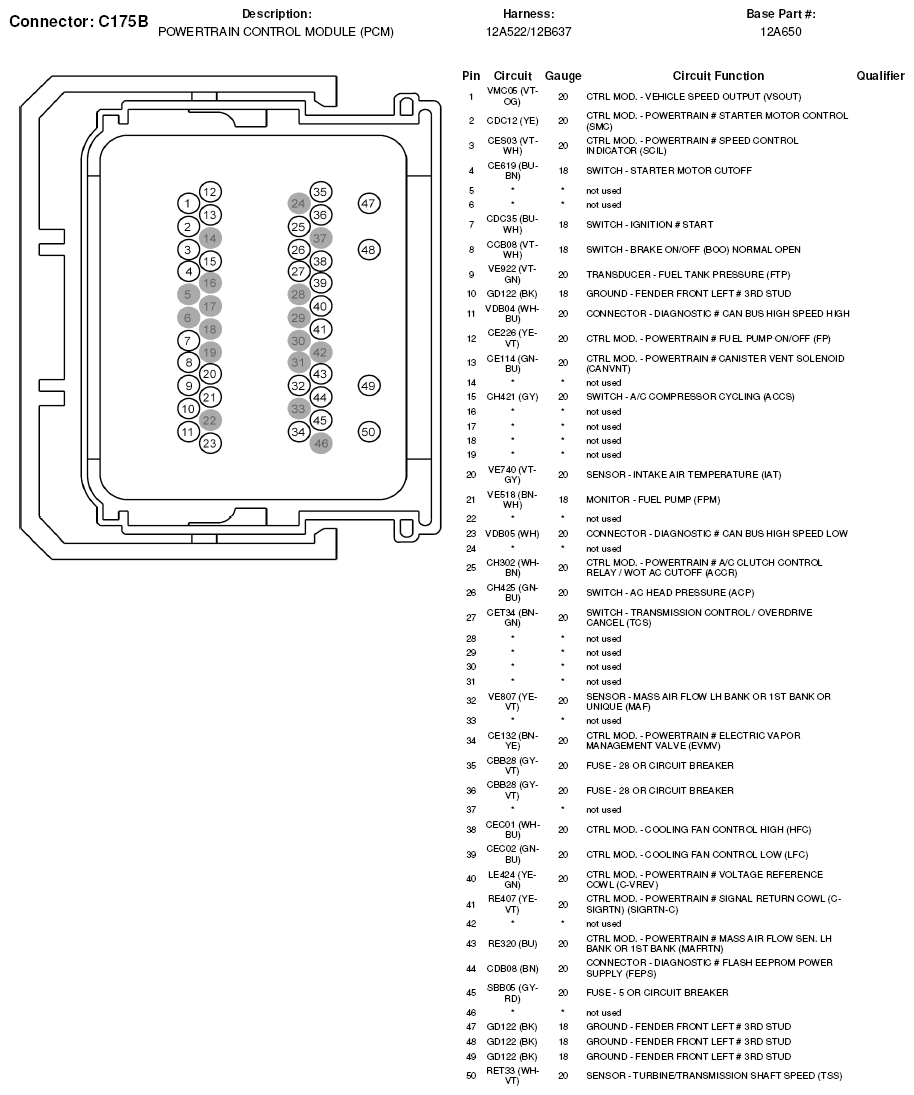

Fig 1: Powertrain Control Module Connector End View (C175B)
