Restraints Control Module Connector End View (C2041B)

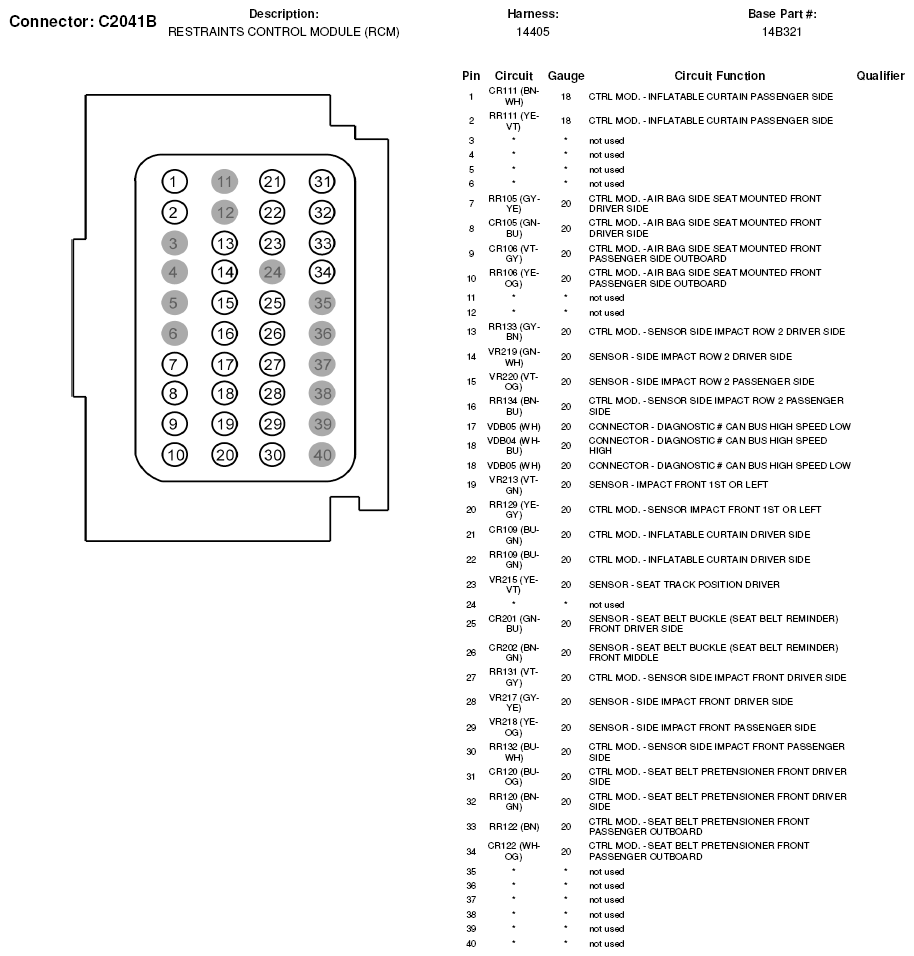

Fig 1: Restraints Control Module Connector End View (C2041B)

G05599350
