Satellite Digital Audio Receiver System Module Connector End View (C2400)

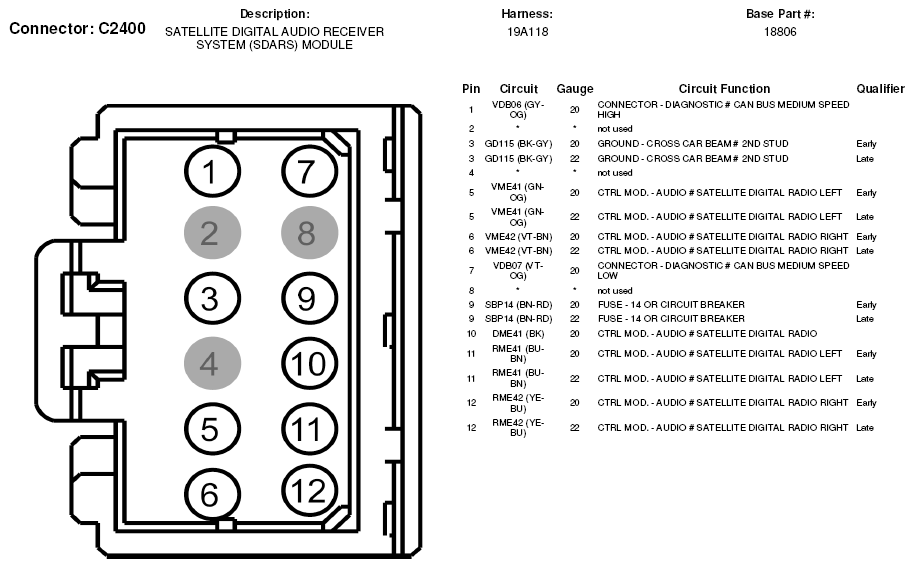

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C2400)
G05599375
