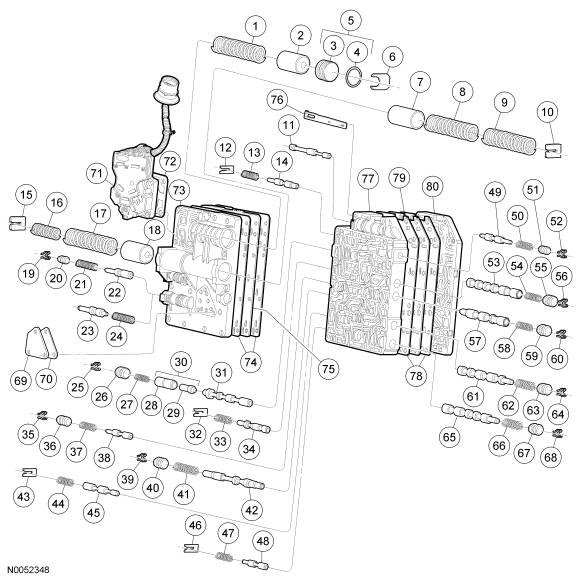

| 1 |
- |
Spring - 2/4 accumulator valve |
| 2 |
- |
Accumulator - main control |
| 3 |
- |
Plug - 2/4 accumulator valve |
| 4 |
7H223 |
Seal - 2/4 accumulator body |
| 5 |
- |
Plug assembly - 2/4 accumulator valve |
| 6 |
- |
Plate - spring retaining |
| 7 |
- |
Accumulator - main control |
| 8 |
- |
Spring - forward accumulator (outer) |
| 9 |
- |
Spring - forward accumulator (inner) |
| 10 |
- |
Plate - spring retainer |
| 11 |
- |
Valve - manual control |
| 12 |
- |
Plate - spring retaining |
| 13 |
- |
Spring - solenoid regulator valve |
| 14 |
- |
Valve - solenoid regulator |
| 15 |
- |
Spring - retaining |
| 16 |
- |
Spring - low/reverse accumulator (inner) |
| 17 |
- |
Spring - low/reverse accumulator (outer) |
| 18 |
- |
Accumulator - main control |
| 19 |
- |
Retainer - valve plug |
| 20 |
- |
Plug - valve retainer |
| 21 |
- |
Spring - 3-2 timing valve (2.3L engine) |
| 22 |
- |
Valve - 3-2 timing (2.3L engine) |
| 23 |
- |
Valve - 3-2 timing (3.0L engine) |
| 24 |
- |
Spring - 3-2 timing valve (3.0L engine) |
| 25 |
- |
Retainer - valve plug |
| 26 |
- |
Plug - valve retainer |
| 27 |
- |
Spring - bypass clutch control valve |
| 28 |
- |
Sleeve - bypass clutch control |
| 29 |
- |
Plunger - clutch control valve |
| 30 |
- |
Valve assembly - bypass control valve |
| 31 |
- |
Valve - bypass clutch control |
| 32 |
- |
Plate - spring retaining |
| 33 |
- |
Spring - converter regulator valve |
| 34 |
- |
Valve - converter regulator |
| 35 |
- |
Retainer - valve plug |
| 36 |
- |
Plug - valve retainer |
| 37 |
- |
Spring - coast clutch shift |
| 38 |
- |
Valve - line modulator |
| 39 |
- |
Retainer - valve plug |
| 40 |
- |
Plug - valve retainer |
| 41 |
- |
Spring - fluid pressure regulator valve |
| 42 |
- |
Valve - main regulator |
| 43 |
- |
Plate - spring retaining |
| 44 |
- |
Spring - servo release shuttle valve |
| 45 |
- |
Valve - servo release shuttle |
| 46 |
- |
Plate - spring retaining |
| 47 |
- |
Spring - coast clutch shift valve |
| 48 |
- |
Valve - line modulator |
| 49 |
- |
Valve - low/reverse modulator |
| 50 |
- |
Spring - modulator valve |
| 51 |
- |
Plug - valve retainer |
| 52 |
- |
Retainer - valve plug |
| 53 |
- |
Valve - 1-2 shift |
| 54 |
- |
Spring - valve |
| 55 |
- |
Plug - valve retainer |
| 56 |
- |
Retainer - valve plug |
| 57 |
- |
Valve - 3-2 control |
| 58 |
- |
Spring - valve |
| 59 |
- |
Plug - valve retainer |
| 60 |
- |
Retainer - valve plug |
| 61 |
- |
Valve - 2-3 shift |
| 62 |
- |
Spring - valve |
| 63 |
- |
Plug - valve retainer |
| 64 |
- |
Retainer - valve plug |
| 65 |
- |
Valve - 3-4 shift |
| 66 |
- |
Spring - valve shift |
| 67 |
- |
Plug - valve retainer |
| 68 |
- |
Retainer - valve plug |
| 69 |
- |
Plate - pressure tap |
| 70 |
7H251 |
Gasket - pressure tap plate |
| 71 |
7G391 |
Solenoid valve body - transmission control |
| 72 |
7H200 |
Gasket - electronic control body |
| 73 |
- |
Body - accumulator |
| 74 |
7H202 |
Gasket - accumulator body separator plate |
| 75 |
- |
Plate - accumulator body separator |
| 76 |
- |
Spring assembly - manual valve detent |
| 77 |
- |
Body - main control lower |
| 78 |
7D100 |
Gasket - control valve body separator plate |
| 79 |
- |
Plate - control valve separator |
| 80 |
- |
Plate - case-to-main control transfer |
