Removal And Installation

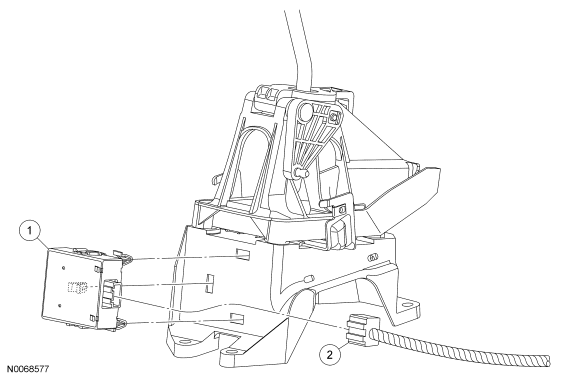

Fig 1: Exploded View Of 4X4 Control Module Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7H473	4X4 control module
2	-	Electrical connector (part of 14405)

Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
Disconnect the electrical connector.
Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.
To install, reverse the removal procedure.
