Steering Gear: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

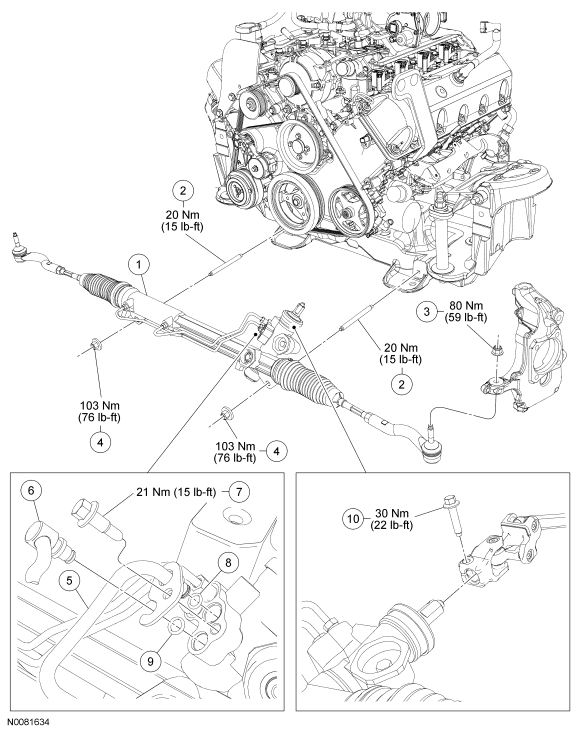

| Item | Part Number | Description |
|---|---|---|
| 1 | 3504 | Steering gear |
| 2 | W707972 | Steering gear studs (2 required) |
| 3 | W520214 | Outer tie-rod end nut |
| 4 | W707492 | Steering gear nuts (2 required) |
| 5 | 3A719 | Pressure line |
| 6 | 3A713 | Return line |
| 7 | W704331 | Steering line clamp plate bolt |
| 8 | N803257 | O-ring seal |
| 9 | N803256 | O-ring seal |
| 10 | W710821 | Steering column shaft-to-steering gear coupling bolt |
