PINPOINT TEST DD: Fuel Rail Pressure Temperature (FRPT) Sensor: Introduction
WARNING:
Vehicle fuel systems are pressurized even when the engine is not running. To avoid fire or personal injury, disable the fuel delivery system and relieve fuel system pressure before removing any fuel system component. Refer to the fuel system information at the beginning of pinpoint HC. Failure to follow these instructions may result in personal injury.
NOTE:
With the engine running, the FRP PID value may be 48-70 kPa (7-10 psi) higher than a fuel pressure reading taken with a mechanical gauge.
This pinpoint test is intended to diagnose the following:
- fuel rail pressure temperature (FRPT) sensor (9G756)
- harness circuits: FRP and FRT
- powertrain control module (PCM) (12A650)
FRPT SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
| Voltage | Pressure (kPa) | Pressure (psi) |
|---|---|---|
| 4.5 | 482 | 70 |
| 3.9 | 413 | 60 |
| 3.4 | 344 | 50 |
| 2.8 | 275 | 40 |
| 2.2 | 207 | 30 |
| 1.6 | 138 | 20 |
| 1.1 | 69 | 10 |
| 0.5 | 0 | 0 |
FRPT SENSOR TEMPERATURE, VOLTAGE, AND RESISTANCE SPECIFICATIONS
| Temperature | Sensor | ||
|---|---|---|---|
| °C | °F | Volts | K Ohms |
| 100 | 212 | 0.47 | 2.073 |
| 95 | 203 | 0.54 | 2.405 |
| 90 | 194 | 0.61 | 2.800 |
| 85 | 185 | 0.70 | 3.273 |
| 80 | 176 | 0.80 | 3.840 |
| 75 | 167 | 0.92 | 4.524 |
| 70 | 158 | 1.06 | 5.351 |
| 65 | 149 | 1.21 | 6.356 |
| 60 | 140 | 1.38 | 7.584 |
| 55 | 131 | 1.56 | 9.091 |
| 50 | 122 | 1.77 | 10.949 |
| 45 | 113 | 1.99 | 13.252 |
| 40 | 104 | 2.23 | 16.123 |
| 35 | 95 | 2.48 | 19.720 |
| 30 | 86 | 2.74 | 24.253 |
| 25 | 77 | 3.00 | 30.000 |
| 20 | 68 | 3.26 | 37.332 |
| 15 | 59 | 3.50 | 46.745 |
| 10 | 50 | 3.73 | 58.911 |
| 5 | 41 | 3.95 | 74.745 |
| 0 | 32 | 4.13 | 95.501 |

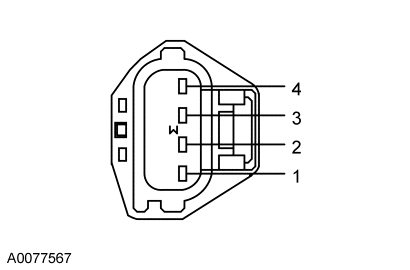

| Pin | Circuit |
|---|---|
| 3 | FRT (Fuel Rail Temperature) |
| 1 | FRP (Fuel Rail Pressure) |
| 4 | SIGRTN (Signal Return) |
| 2 | VREF (Reference Voltage) |
For PCM connector views or reference values, refer to the REFERENCE VALUES article.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Escape/Mariner | 150 (50-50-50) Pin | E40 E28 E41 E37 |
VREF FRT SIGRTN FRP |
| F-150, Mark LT |
190 Pin | E57 E19 E58 E32 |
VREF FRT SIGRTN FRP |
| All other vehicles | 170 Pin | E57 E19 E58 E32 |
VREF FRT SIGRTN FRP |
