Powertrain Control Module (PCM): Notes

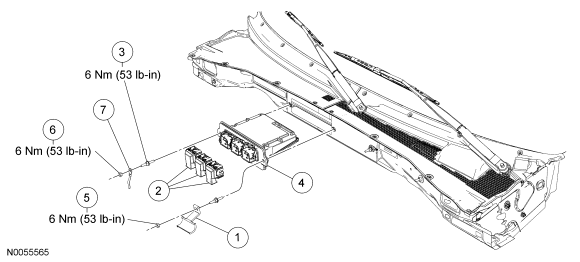

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications
GF0024533Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wiring harness retainer (part of 12B637)
2 14A464 PCM electrical connectors (part of 12B637) (3 required)
3 N806925-S PCM stud bolt (2 required)
4 12A650 PCM
5 W500412 Wiring harness retainer nut
6 W500412 Ground strap nut
7 - Ground strap
