Occupant Classification System Module Connector End View (C3285)

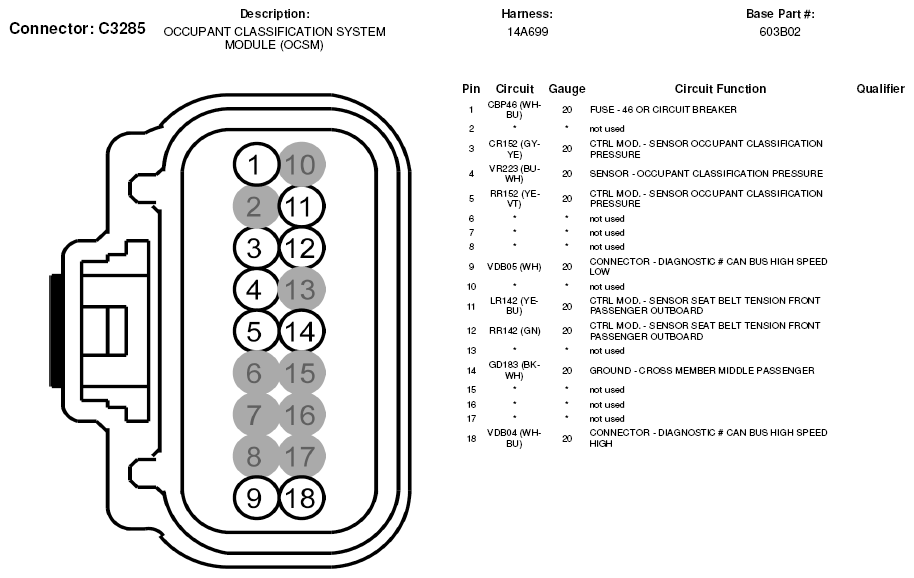

Fig 1: Occupant Classification System Module Connector End View (C3285)
G05599676
