Audio Control Module (ACM)

AUDIO CONTROL MODULE (ACM)







Removal and Installation

NOTE: It is not necessary to remove the audio control module (ACM) to retrieve the part number.

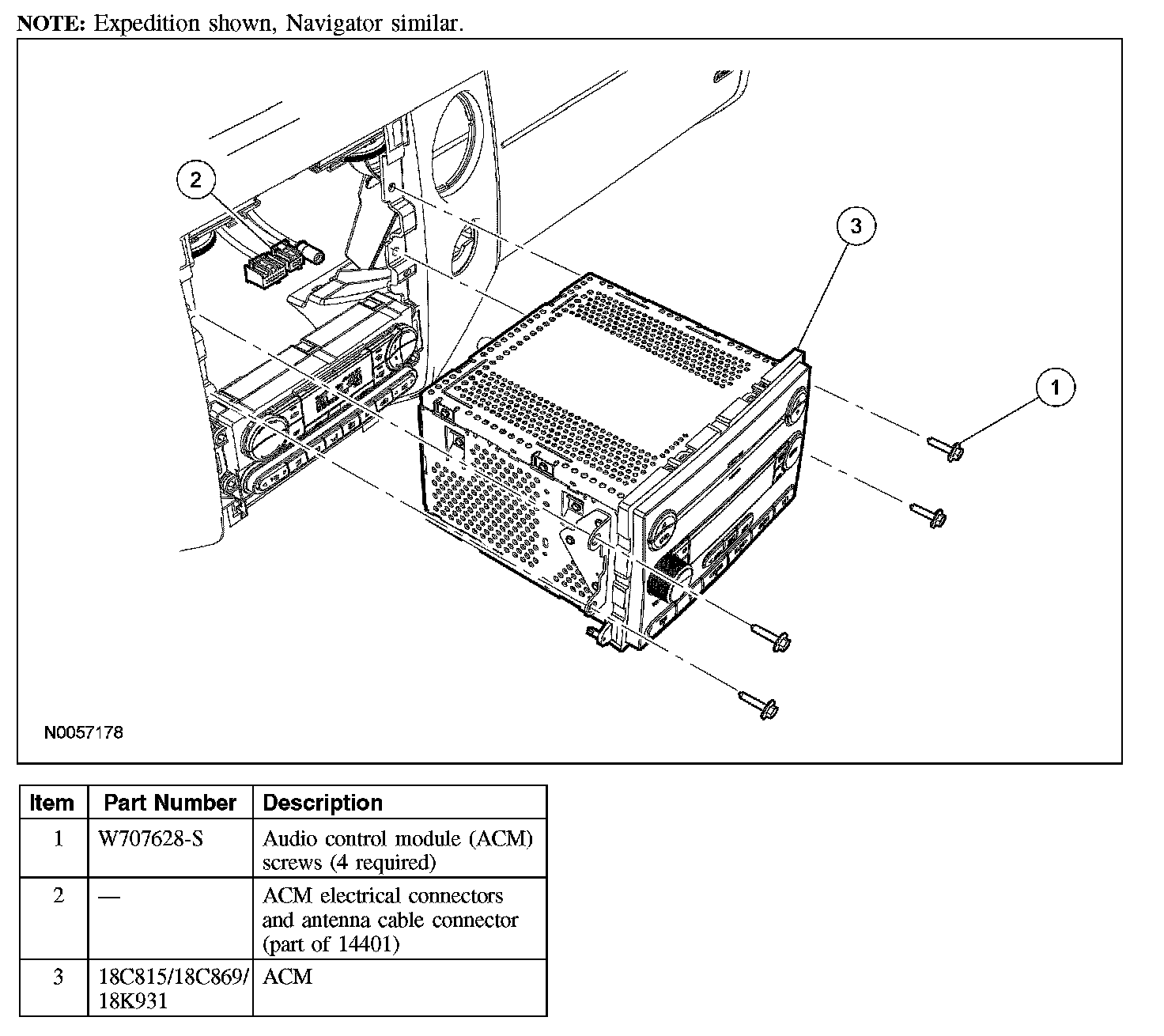

1. Remove the instrument panel center finish panel.
2. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors, the antenna cable connector, and the global positioning system (GPS) antenna (if present).

3. To install, reverse the removal procedure.
