Audio Digital Signal Processing (DSP) Module

AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

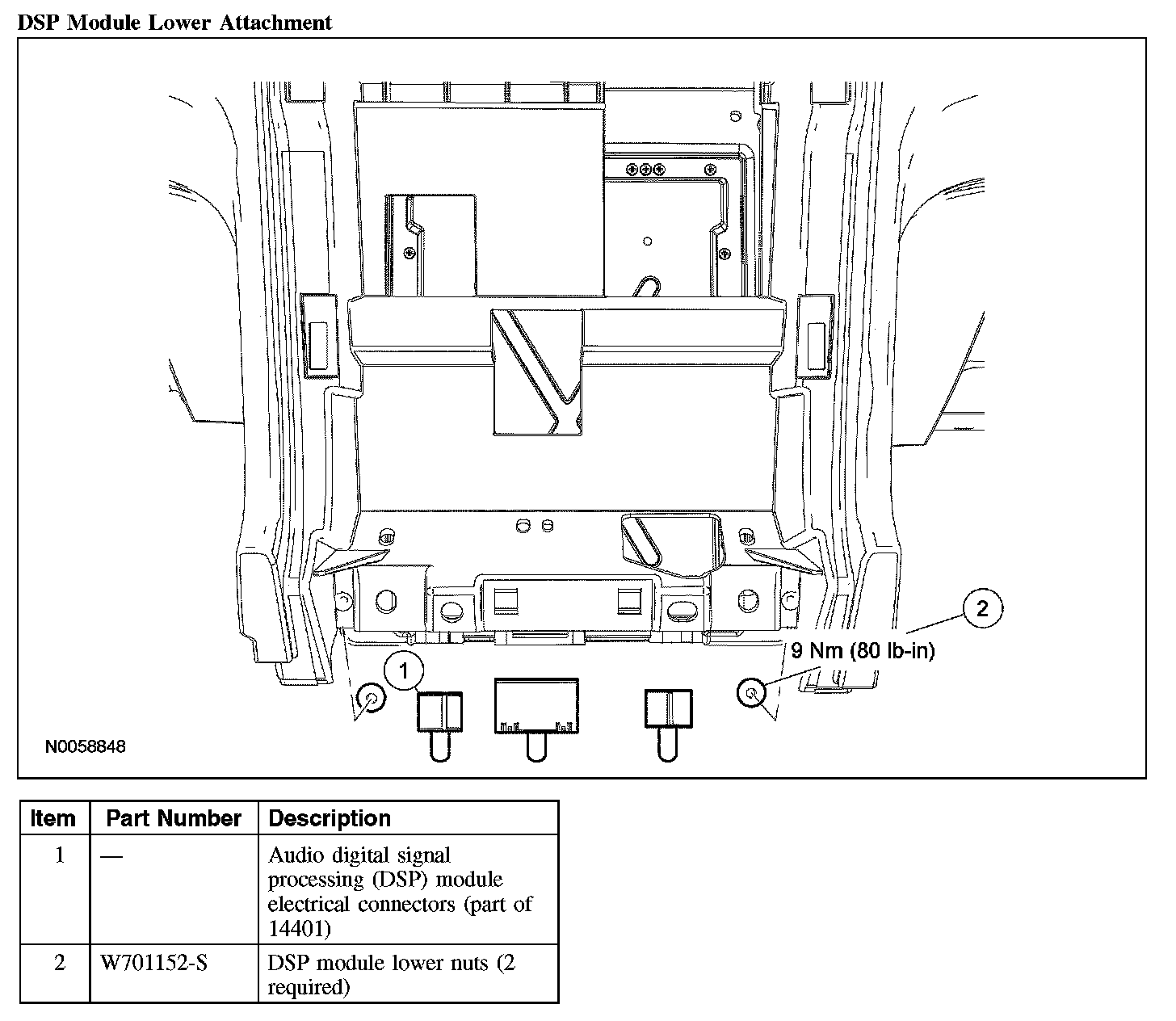

DSP Module Lower Attachment:

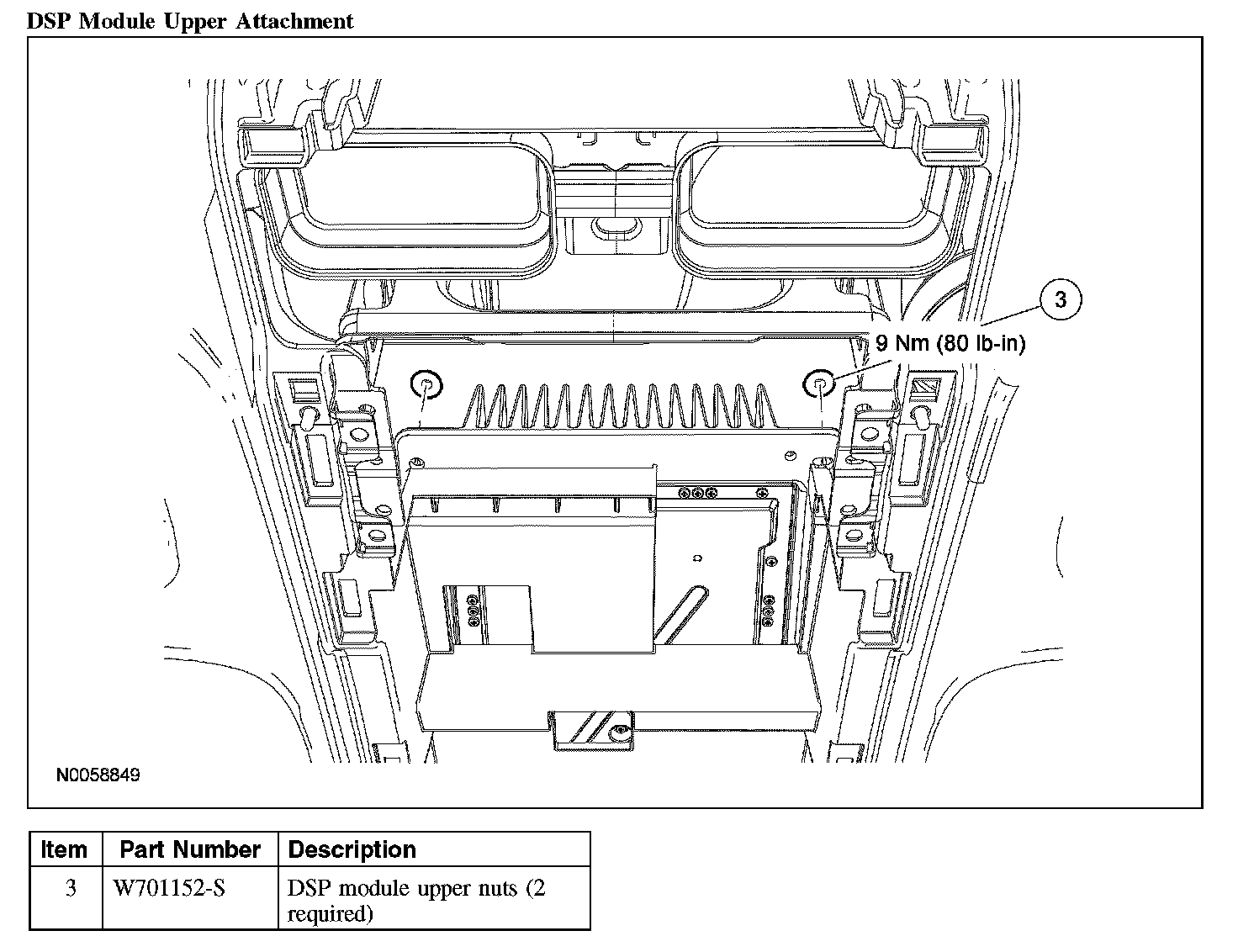

DSP Module Upper Attachment:

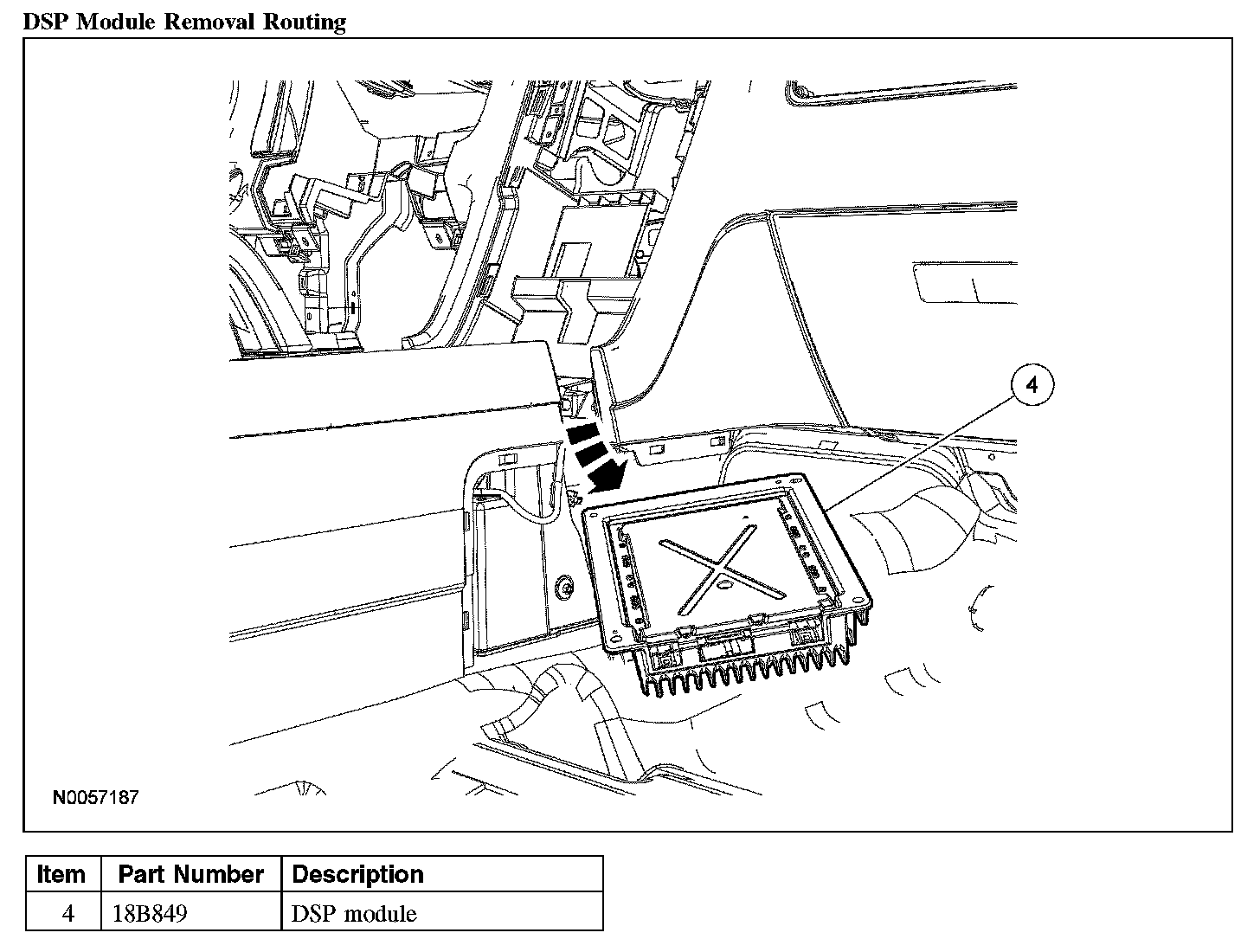

DSP Module Removal Routing:

Removal and Installation
1. Remove the audio control module (ACM).
2. Remove the necessary attachments and move the center console 5 cm (2.0 in) towards the rear of the vehicle.
3. Disconnect the audio digital signal processing (DSP) module electrical connectors.
4. Remove the 2 lower DSP module nuts.
- To install, tighten to 9 Nm (80 lb-in).

5. CAUTION: The DSP module is heavy. Be sure to support the amplifier during removal, or damage to the vehicle may occur.

Remove the 2 upper DSP module nuts.
- To install, tighten to 9 Nm (80 lb-in).

6. Remove the DSP module.
- Route the DSP module down and towards the passenger side of the vehicle.

7. To install, reverse the removal procedure.
