Catalyst Monitor Sensor

CATALYST MONITOR SENSOR

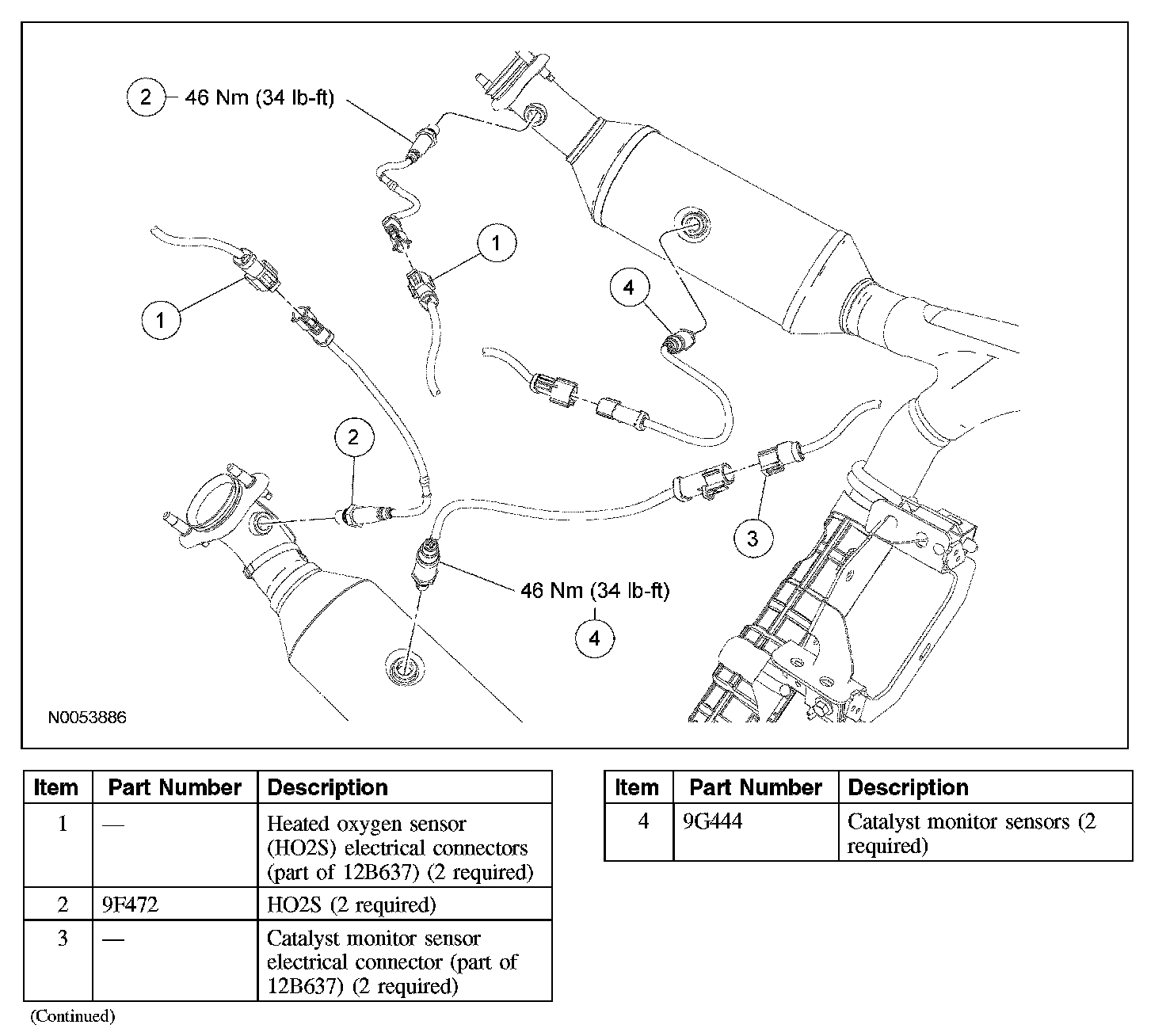

Exploded View

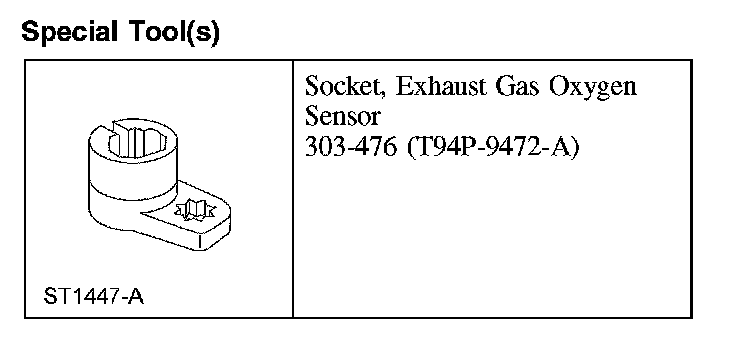

Special Tool(s)

Special Tool(s):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the catalyst monitor sensor electrical connector.

3. NOTE: If necessary, lubricate the HO2S with penetrating and lock lubricant to aid in removal.

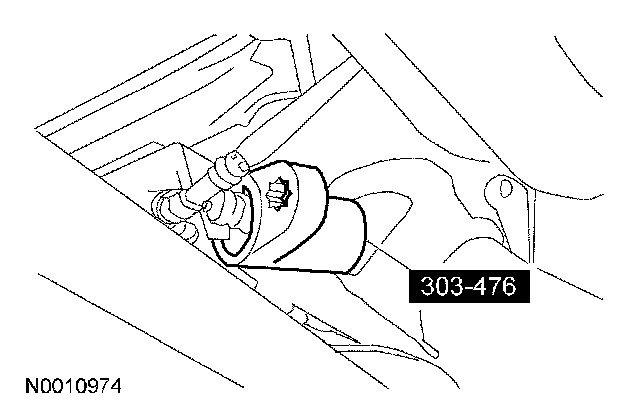

Using the special tool, remove the catalyst monitor sensor.
- To install, tighten to 46 Nm (34 lb-ft).







4. To install, reverse the removal procedure.
- Apply a light coat of nickel anti-seize lubricant to the threads of the HO2S.
