Connecting Rod, Engine

Connecting Rod
Pin bore diameter 22.012-22.024 mm (0.8666-0.8671 in)
Length (center-to-center) 169.1 mm (6.6575 in)
Maximum allowed bend ± 0.038 mm (0.0015 in)
Maximum allowed twist (a) ± 0.05 mm (0.0020 in)
Bearing bore diameter (with assembled liners) 53.049-53.027 mm (2.0885-2.0877 in)
Bearing-to-crankshaft clearance 0.064-0.026 mm (0.0025-0.0010 in)
Side clearance 0.475-0.125 mm (0.0187-0.0049 in)
(a) The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.

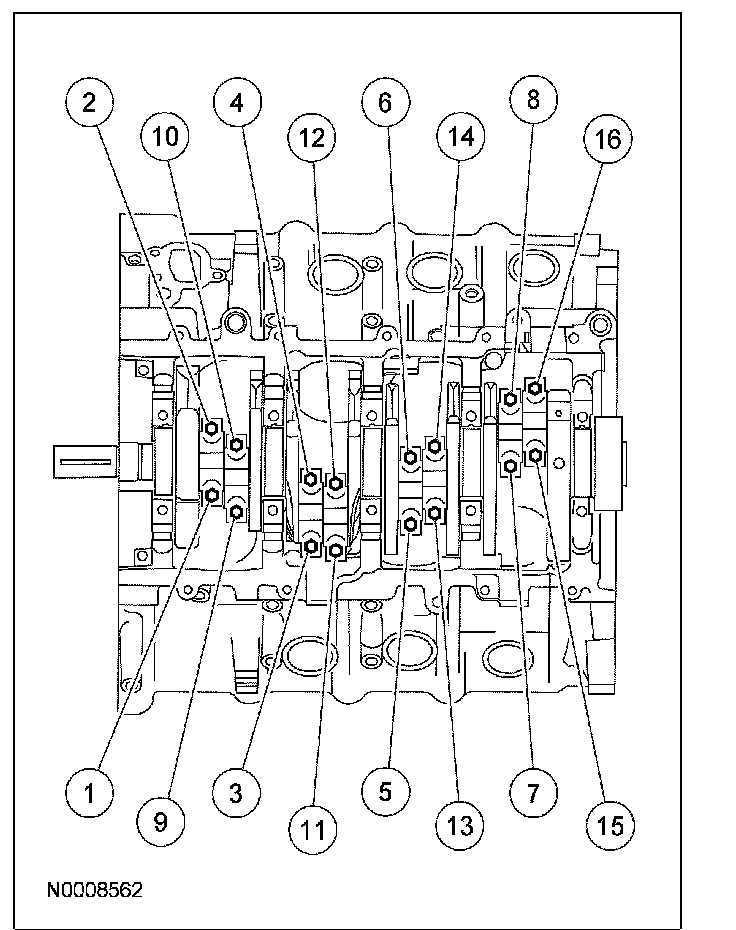

Connecting Rod Cap Bolts





First pass 43 Nm (32 lb-ft).
Final pass Tighten an additional 105°
