Timing Cover

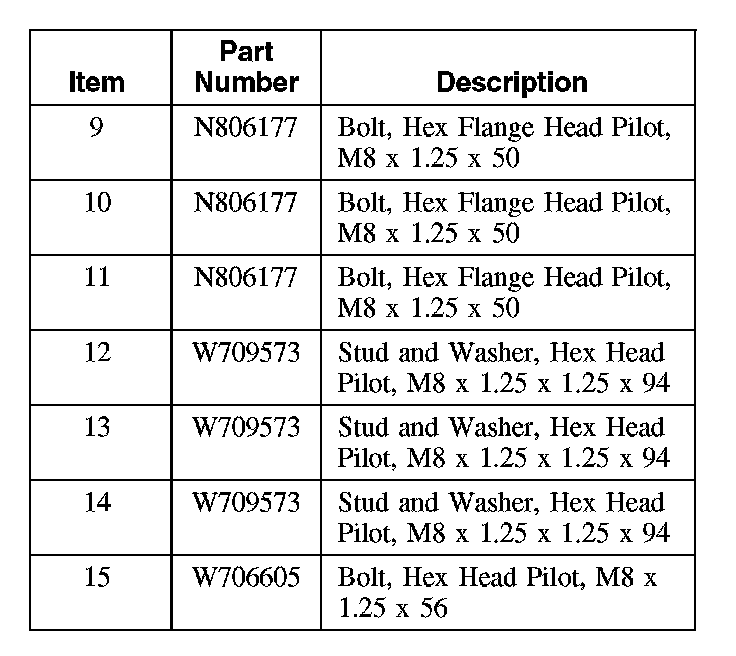

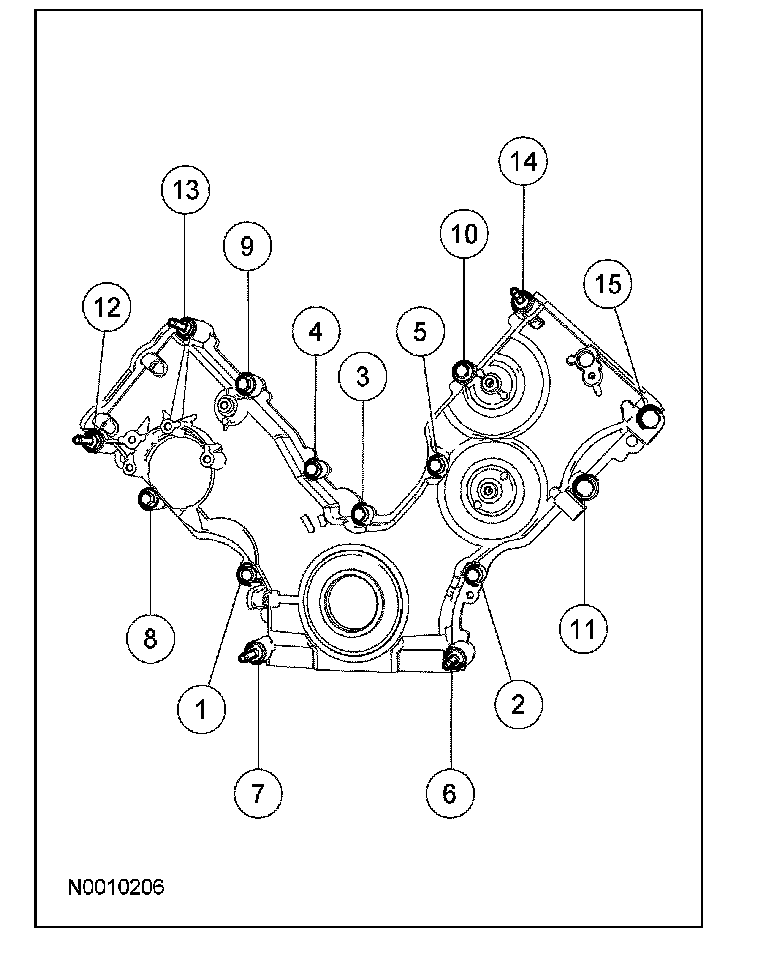

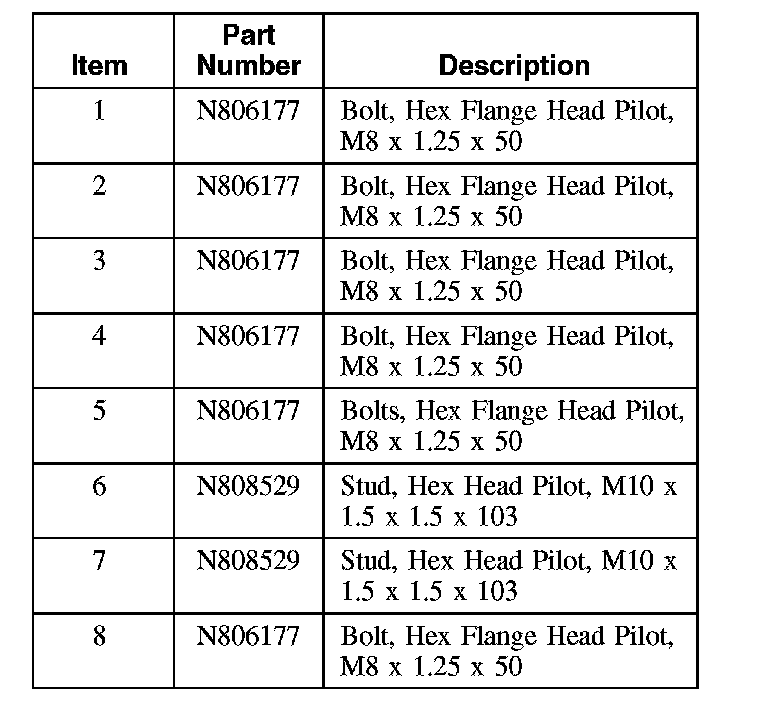

Engine Front Cover Fasteners











First pass: Fasteners 1 through 15 25 Nm (18 lb-ft).
Final pass: Fasteners 6 and 7 48 Nm (35 lb-ft).
