4X4 Control Module: Notes

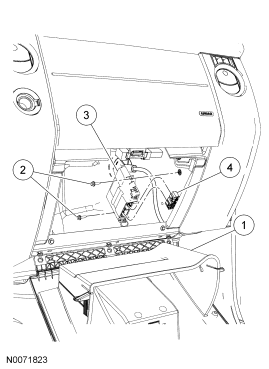

Fig 1: Exploded View Of 4X4 Control Module
GF0046943Courtesy of FORD MOTOR CO.
Item Part Number Description
1 06010 Glove compartment assembly
2 W705314 Screws
3 7E453 4X4 control module
4 - Connector (part of 12A581)
