Window Glass - Liftgate: Notes
Material
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

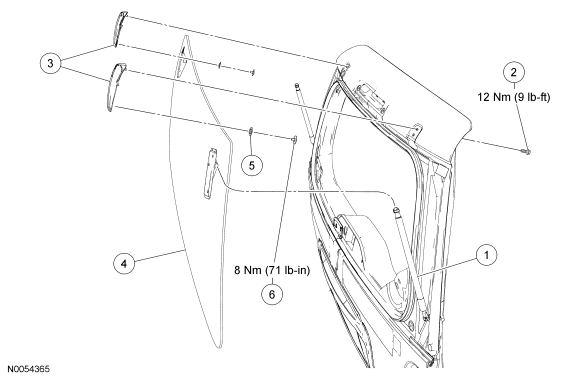

| Item | Part Number | Description |
|---|---|---|
| 1 | 42104 | Liftgate glass assist cylinder (2 required) |
| 2 | W712536 | Liftgate glass hinge-to-body fastener (2 required) |
| 3 | 420A68 | Liftgate glass hinge assembly (2 required) |
| 4 | 422A12 | Liftgate glass assembly |
| 5 | 40610 | Nylon spacer |
| 6 | - | Liftgate glass-to-hinge bolt |
