EMTC HVAC Module Connector

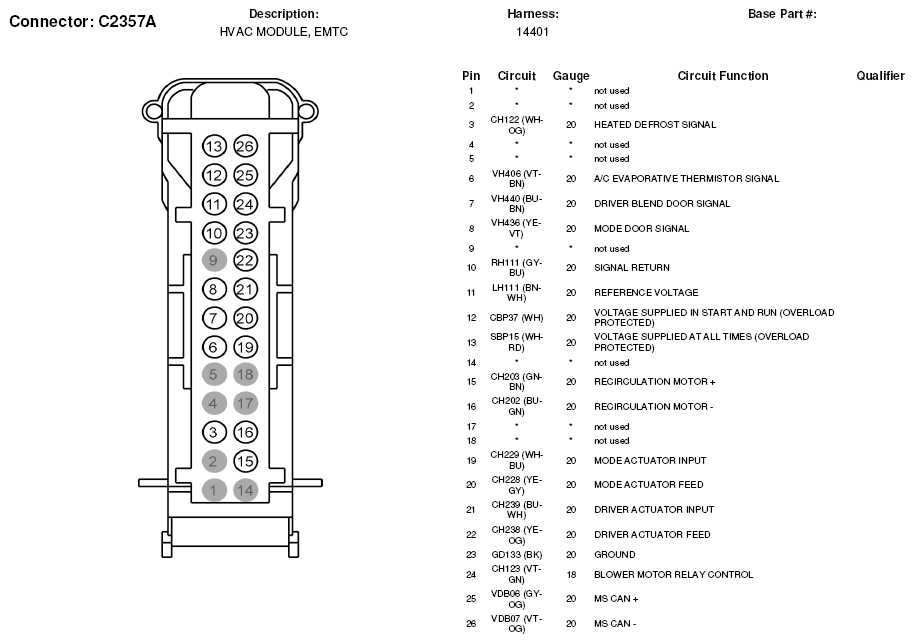

Fig 1: EMTC HVAC Module Connector End View (C2357A)
G05600045

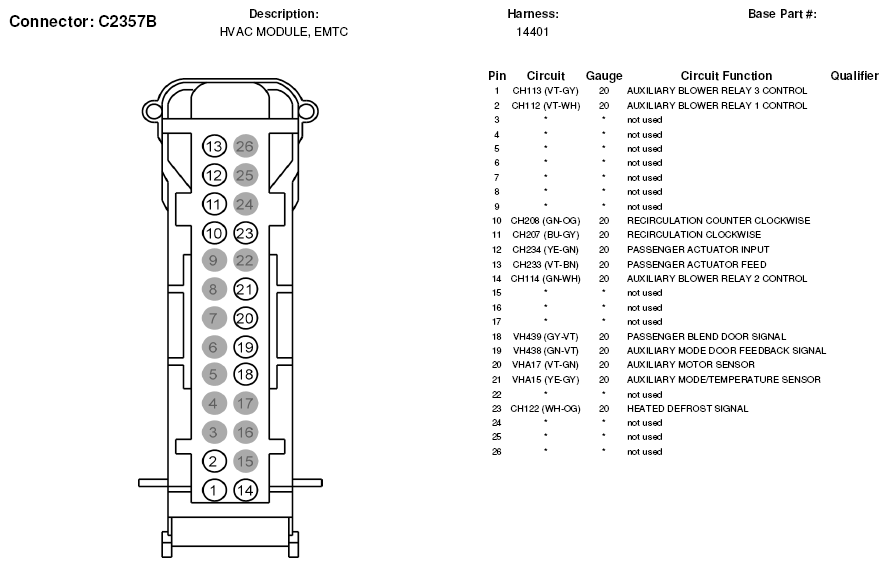

Fig 2: EMTC HVAC Module Connector End View (C2357B)
G05600046

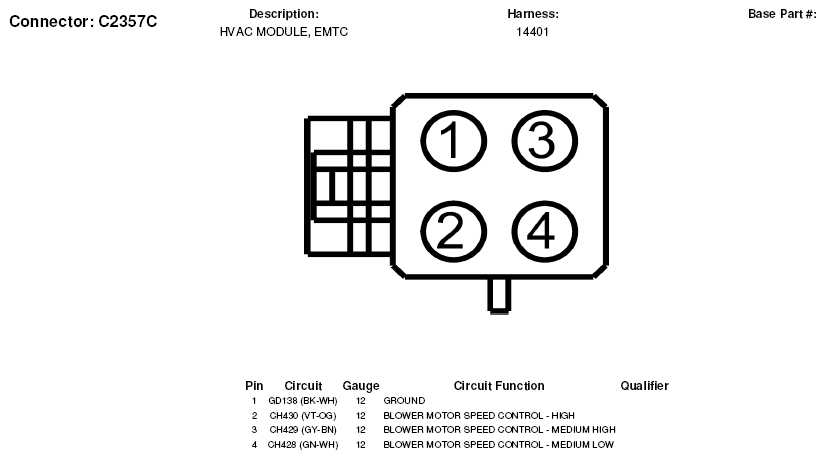

Fig 3: EMTC HVAC Module Connector End View (C2357C)
G05600047
