Left Reversing Lamp Connector

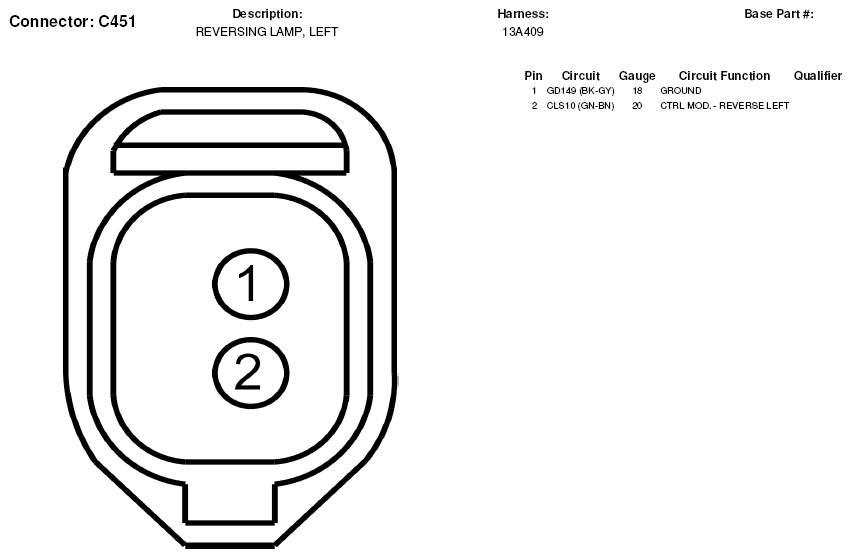

Fig 1: Left Reversing Lamp Connector End View (C451)

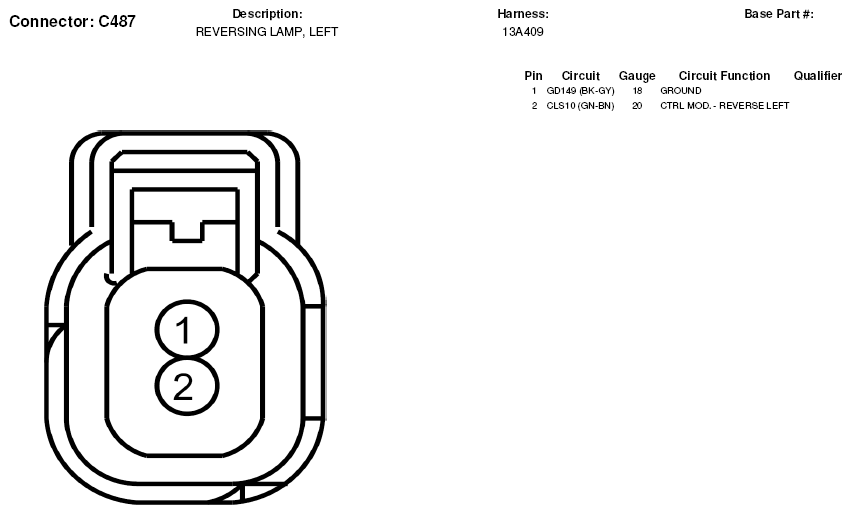

Fig 2: Left Reversing Lamp Connector End View (C487)
