Dual Climate Controlled Seat Module Connector

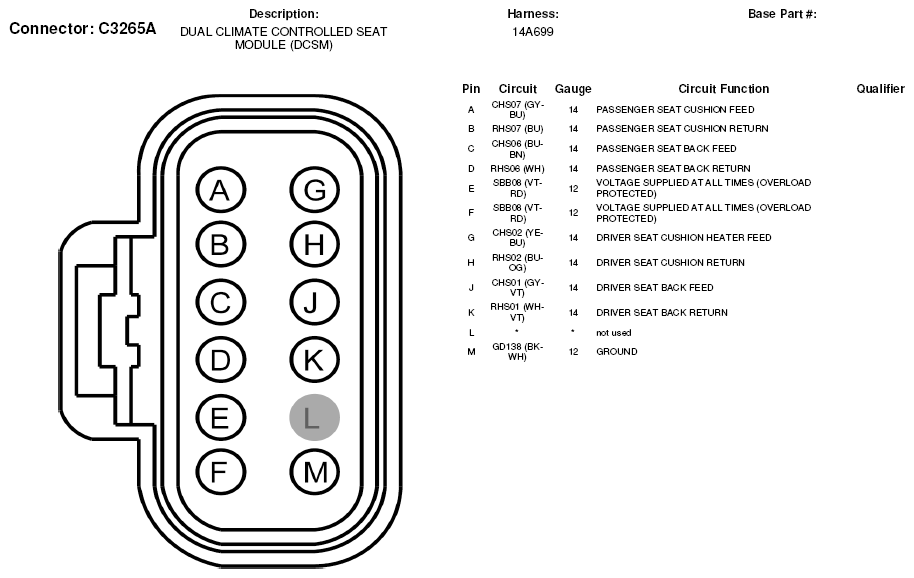

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3265A)
G05600092

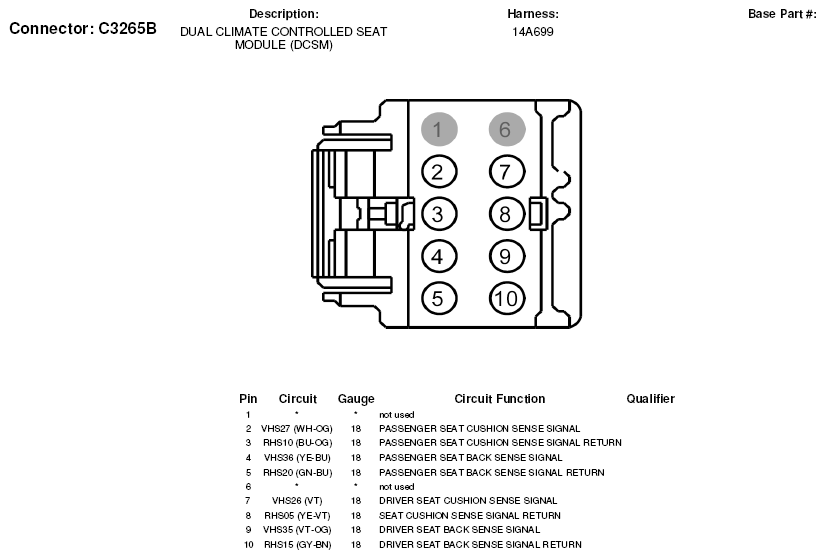

Fig 2: Dual Climate Controlled Seat Module Connector End View (C3265B)
G05600093

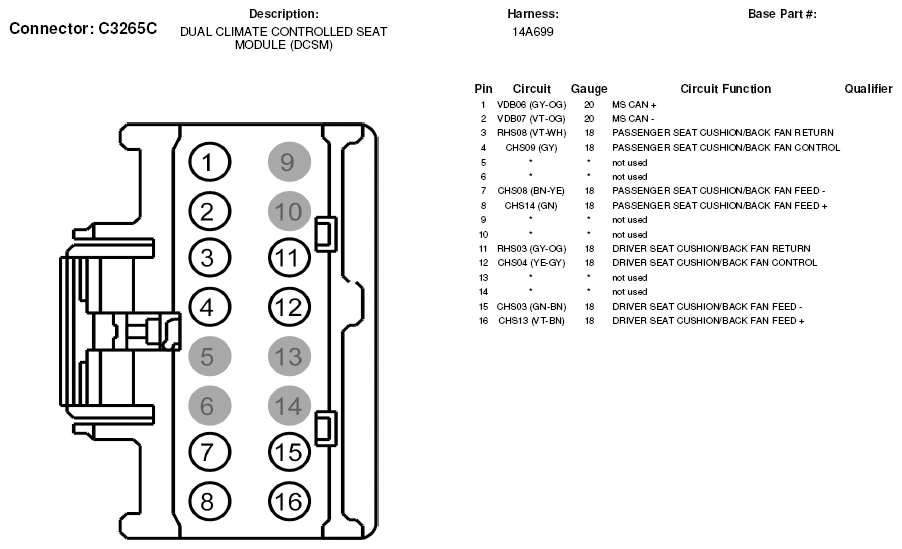

Fig 3: Dual Climate Controlled Seat Module Connector End View (C3265C)
G05600094
