Windshield Glass: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Rotunda Pneumatic Knife with Offset Blade	107-R1511 or equivalent
Courtesy of FORD MOTOR CO.	The Pumper	164-R2459 or equivalent
Courtesy of FORD MOTOR CO.	Rotunda Interior Auto Glass Cut-Out Knife Kit	164-R2450 or equivalent

Material

Item	Specification
Dow Urethane Adhesive Betaseal® Express^a	-
Dow Urethane One Step Glass Primer Betaprime® 5500/5500A/5500SA^a	-
Sika Urethane Adhesive Sika Tack ASAP^b	-
Sika Urethane Metal and Glass Primer Sika 206 G+P^b	-
Ultra-Clear Spray Glass Cleaner ZC-23	ESR-M14P5-A

^a Dow 2-hour cure

^b Sika 2-hour cure

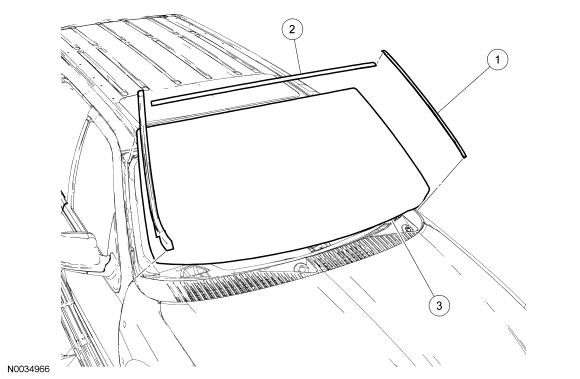

Fig 1: Exploded View Of Windshield Glass

GF0021567

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	51692	Windshield side molding (2 required)
2	03110	Windshield top weatherstrip
3	03100	Windshield glass
