Satellite Digital Audio Receiver System (SDARS) Module: Notes

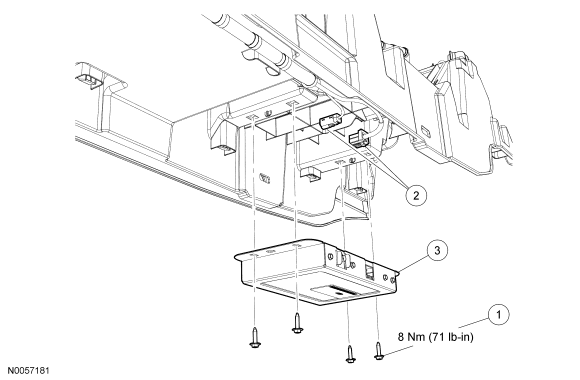

Fig 1: Exploded View Of Satellite Radio Receiver With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628-S	Satellite digital audio receiver system (SDARS) module screws (4 required)
2	-	SDARS module electrical connectors (part of 14A464)
3	18806	SDARS module
