Anti-Lock Brake System ModuleConnector

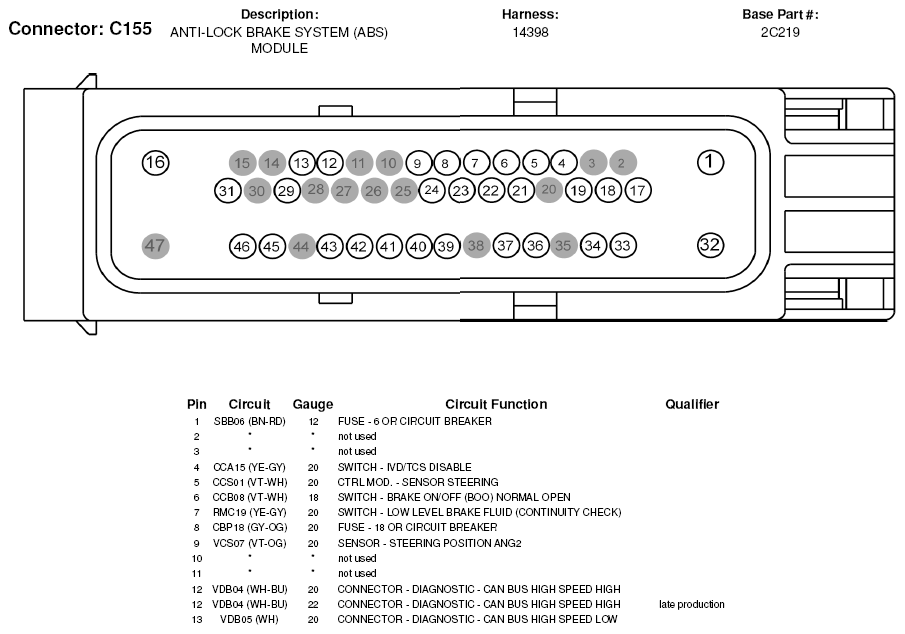

Fig 1: Anti-Lock Brake System Module Connector End View (C155) (1 Of 2)
G05600597

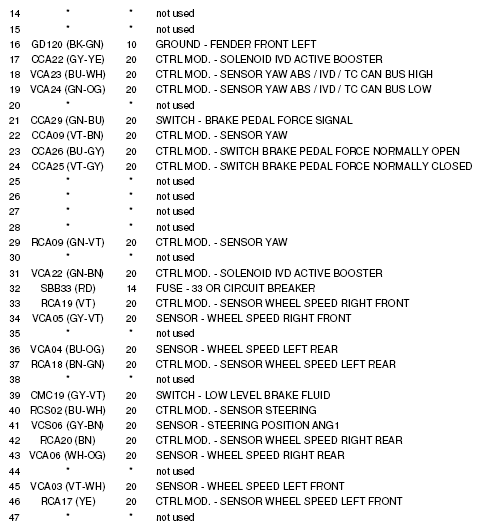

Fig 2: Anti-Lock Brake System Module Connector End View (C155) (2 Of 2)
G05600598
