Window Control Switch: Notes

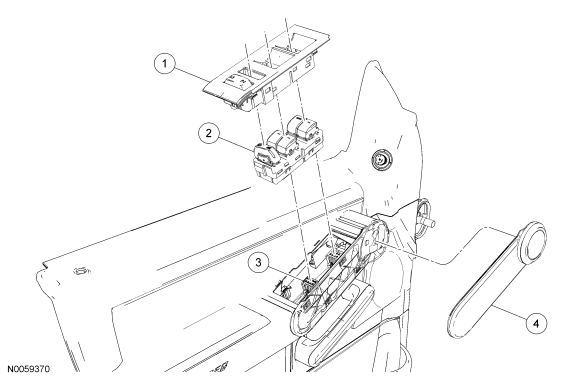

Fig 1: Exploded View Of Window Control Switch
GF0026461Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464B Window control switch bezel
2 14529 Window control switch
3 14524 RH/ 14525 LH Window control switch electrical connectors
4 14A563 RH/ 14A564 LH Interior door handle cover
