Power Running Board Module Connector

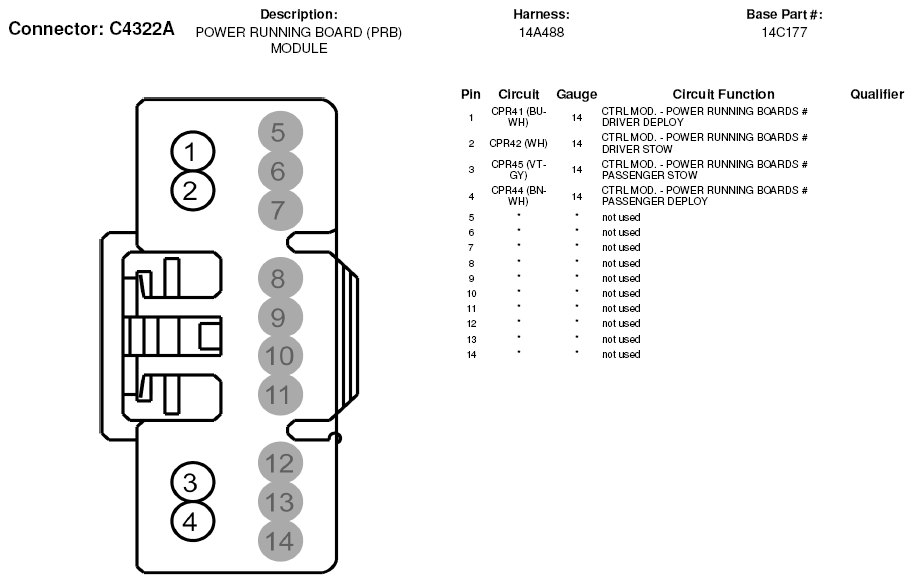

Fig 1: Power Running Board Module Connector End View (C4322A)

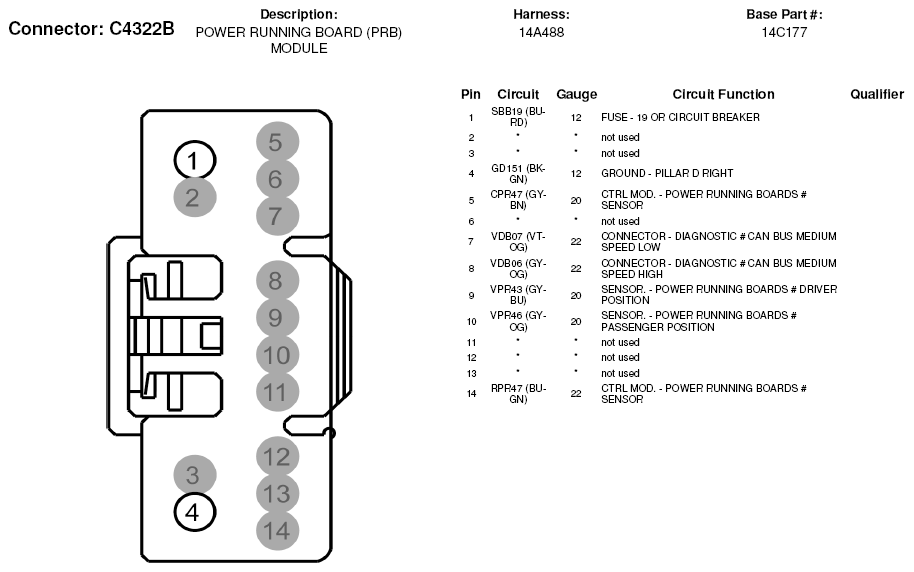

Fig 2: Power Running Board Module Connector End View (C4322B)
