Transmission Control Module 6R60 Connector

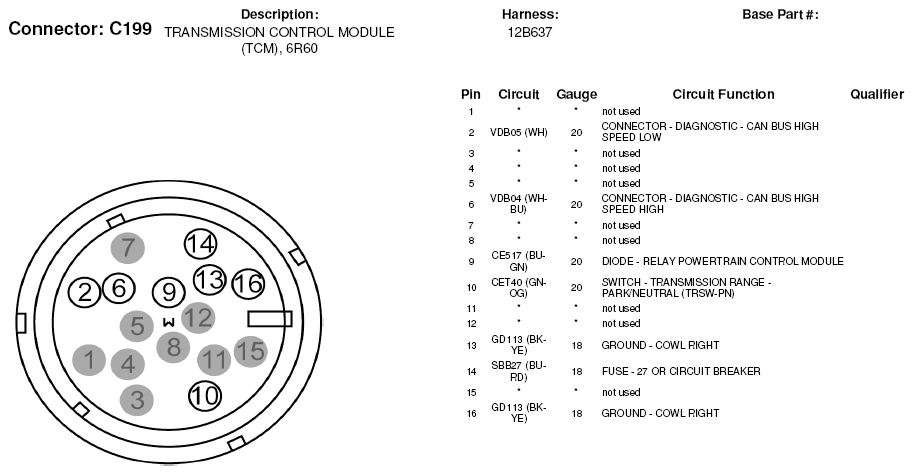

Fig 1: Transmission Control Module 6R60 Connector End View (C199)

G05600631
