Audio Control Module Connector

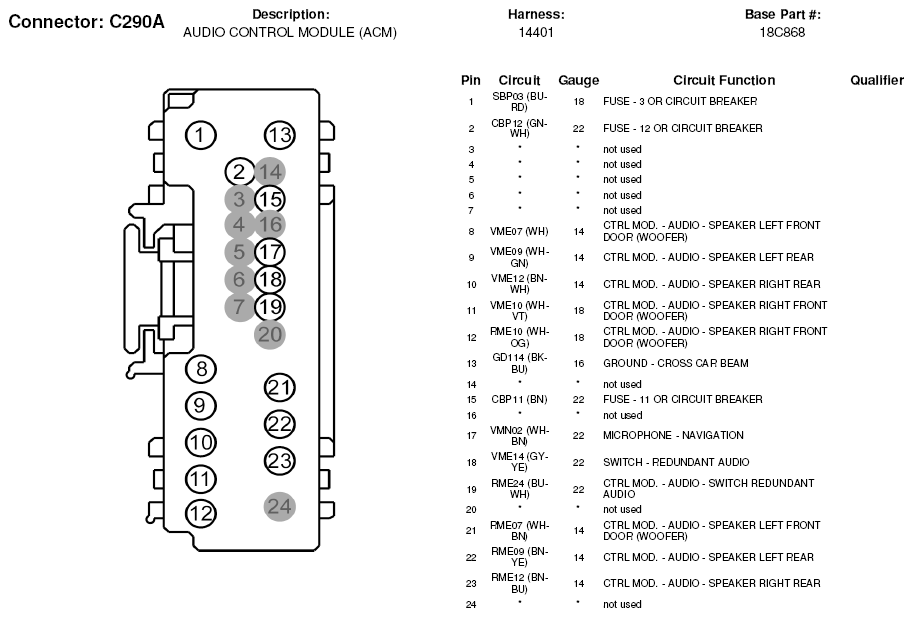

Fig 1: Audio Control Module Connector End View (C290A)
G05600672

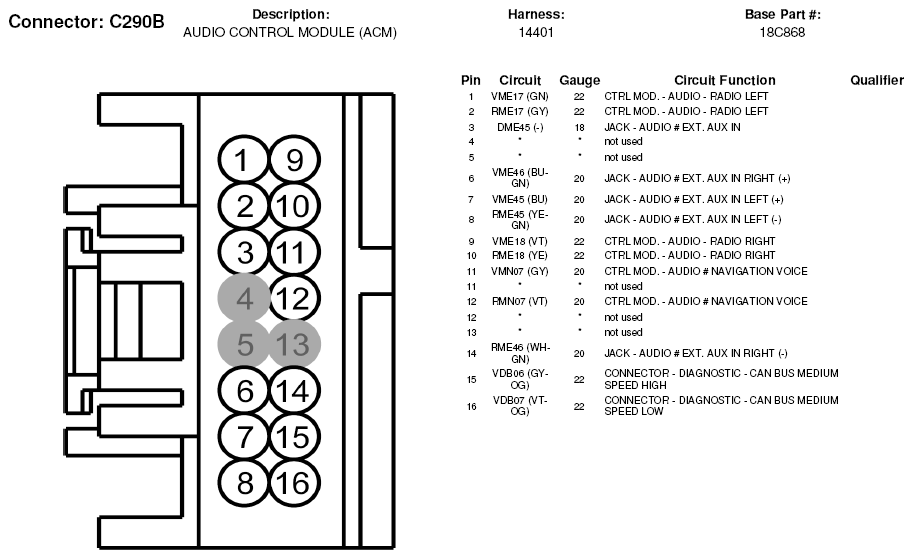

Fig 2: Audio Control Module Connector End View (C290B)
G05600673

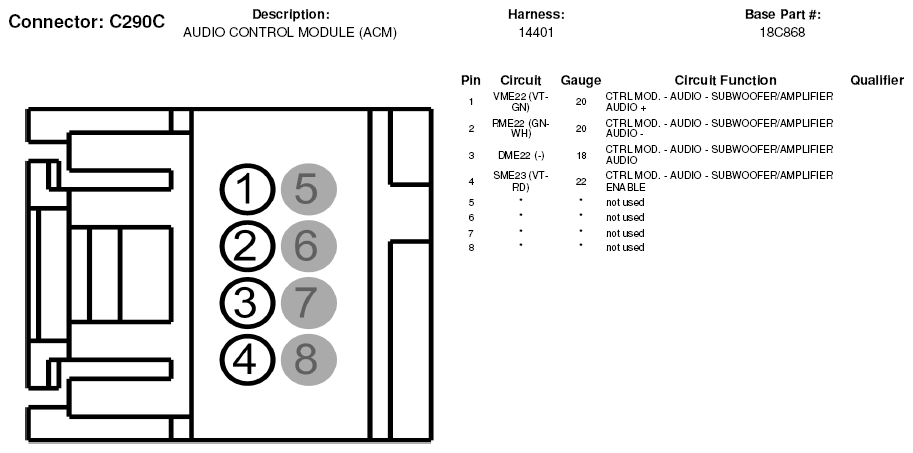

Fig 3: Audio Control Module Connector End View (C290C)
G05600674
