Fuel Pump Driver Module Control Connector

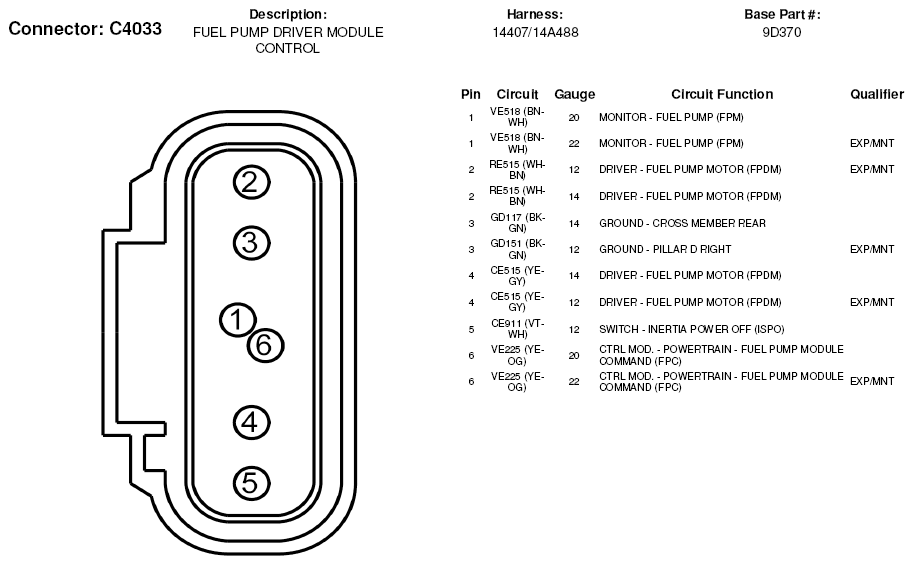

Fig 1: Fuel Pump Driver Module Control Connector End View (C4033)
