Powertrain Control Module Connector

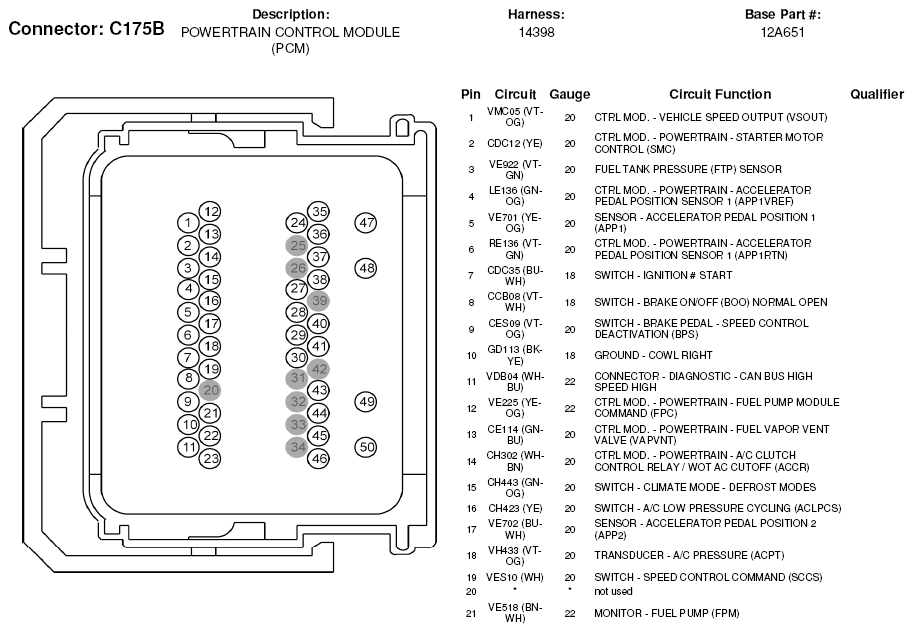

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175B) (1 Of 2)

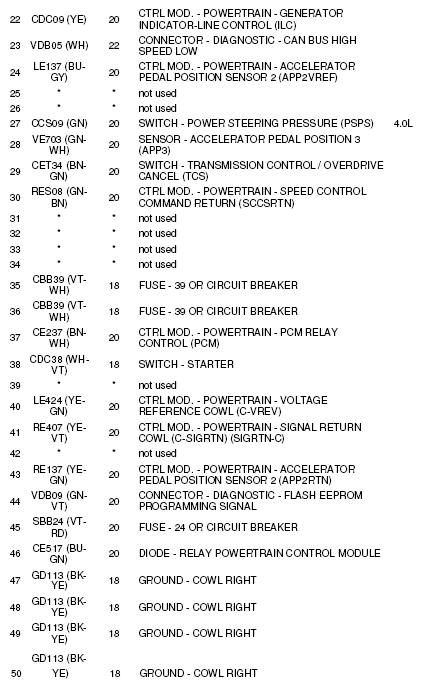

Fig 2: Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)

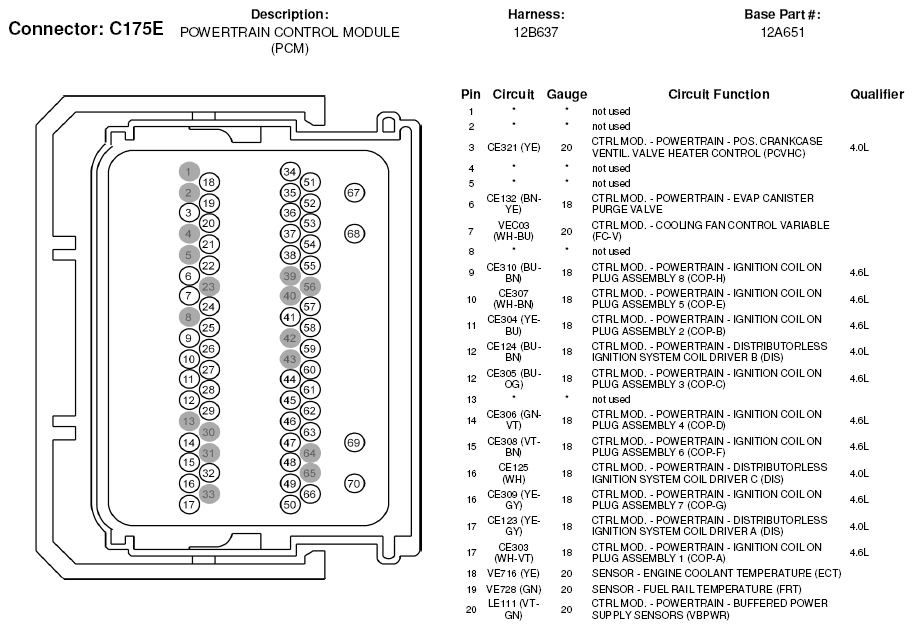

Fig 3: Powertrain Control Module Connector End View (C175E) (1 Of 3)

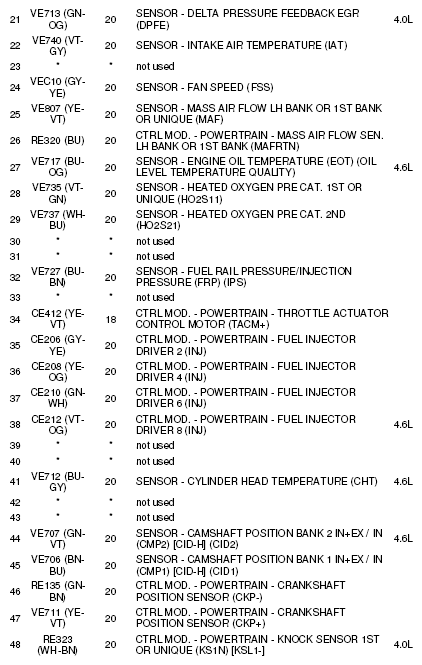

Fig 4: Powertrain Control Module Connector End View (C175E) (2 Of 3)

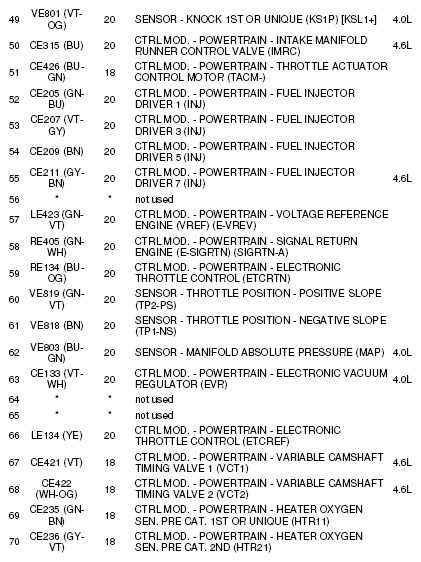

Fig 5: Powertrain Control Module Connector End View (C175E) (3 Of 3)

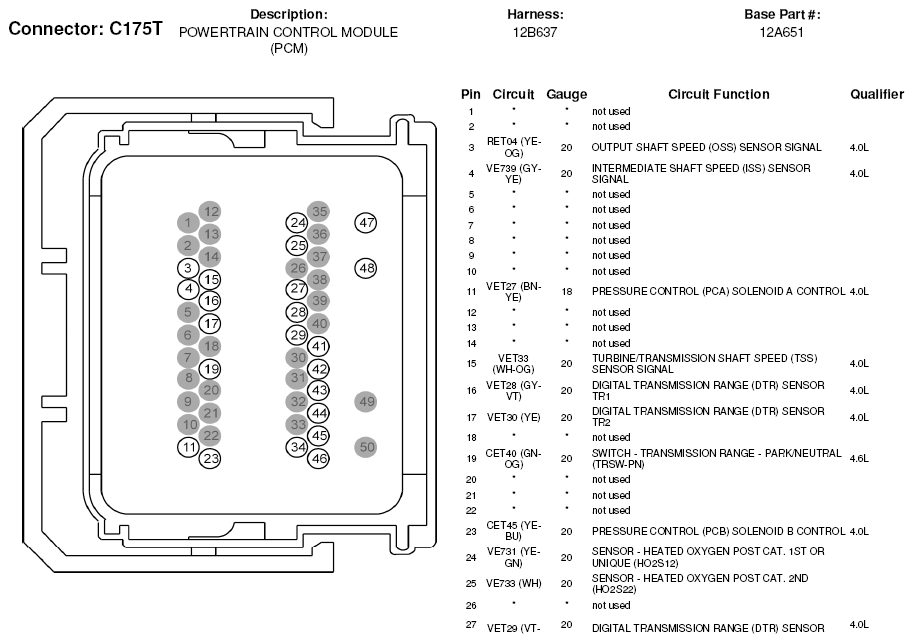

Fig 6: Powertrain Control Module (1 Of 2) Connector End View (C175T) (1 Of 2)

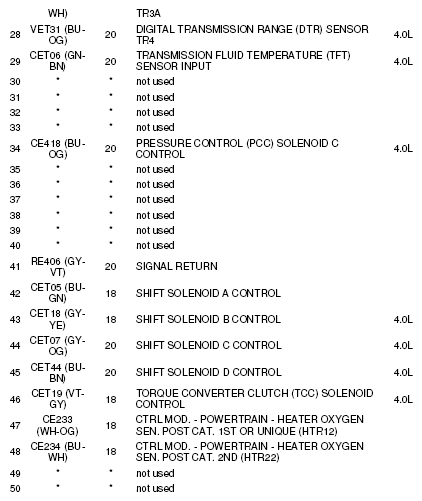

Fig 7: Powertrain Control Module (2 Of 2) Connector End View (C175T) (2 Of 2)
