Window Glass - Liftgate: Notes
Material
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

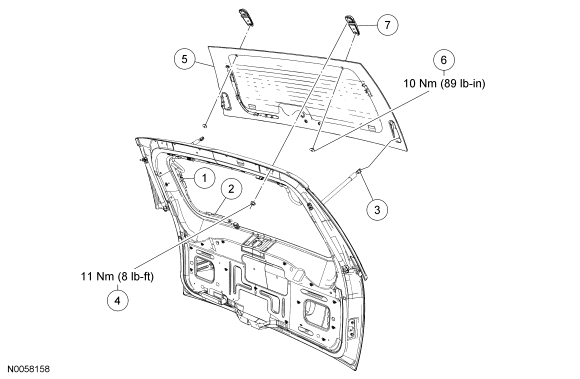

| Item | Part Number | Description |
|---|---|---|
| 1 | 17A413 RH/ 18C673 LH | Heated rear window grid electrical wire |
| 2 | - | Rear window glass electrical connector |
| 3 | 7842105 RH/ 7842104 LH | Liftgate window glass strut |
| 4 | N621926 | Liftgate window glass hinge-to-body retaining nut (2 required) |
| 5 | 7842004 | Liftgate window glass |
| 6 | - | Liftgate hinge-to-glass screw (2 required) |
| 7 | 78420A68 RH / 78420A69 LH | Liftgate hinge |
