Inner Tie Rod: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Inner Tie-Rod Socket Tool	211-D029 or equivalent
Courtesy of FORD MOTOR CO.	C-Frame and Screw	211-023 (T74P-3044-A1)
Courtesy of FORD MOTOR CO.	Boot Clamp Pliers	205-D067 (D87P-1098-A) or equivalent

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

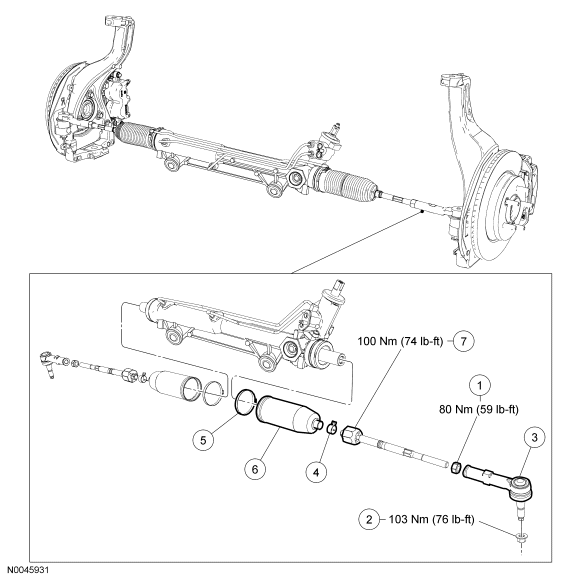

Fig 1: Exploded View Of Inner Tie Rod With Torque Specifications

GF0027740

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Tie-rod end jam nut (part of 3290)
2	W520215	Tie-rod end nut
3	3290	Tie-rod end
4	3C560	Outer bellows boot clamp
5	3C650	Inner bellows boot clamp
6	3K661	Steering gear bellows boot
7	3280	Inner tie rod
