Steering Column: Notes
NOTE:
Steering wheel is removed for clarity.
Courtesy of FORD MOTOR CO.

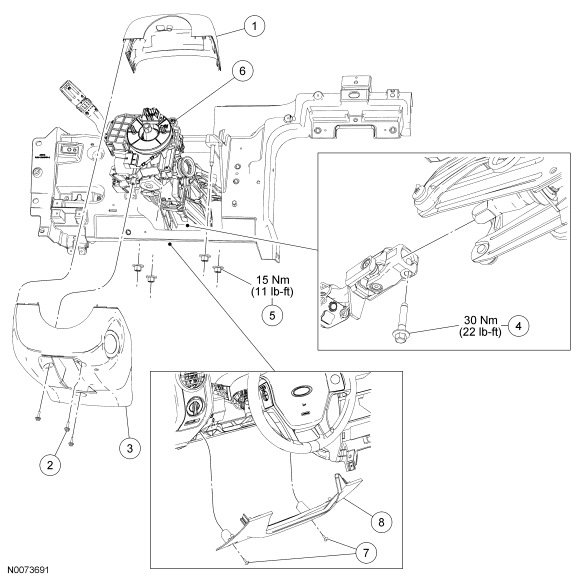

| Item |
Part Number |
Description |
| 1 |
3F914 |
Upper steering column shroud |
| 2 |
W707658 |
Lower steering column shroud screw (3 required) |
| 3 |
3F914 |
Lower steering column shroud |
| 4 |
N808684 |
Upper steering column shaft-to-steering column bolt |
| 5 |
N806423 |
Steering column support bracket nut (4 required) |
| 6 |
3C529 |
Steering column |
| 7 |
W705314 |
Steering column opening cover screws (3 required) |
| 8 |
04459 |
Steering column opening cover |
Courtesy of FORD MOTOR CO.

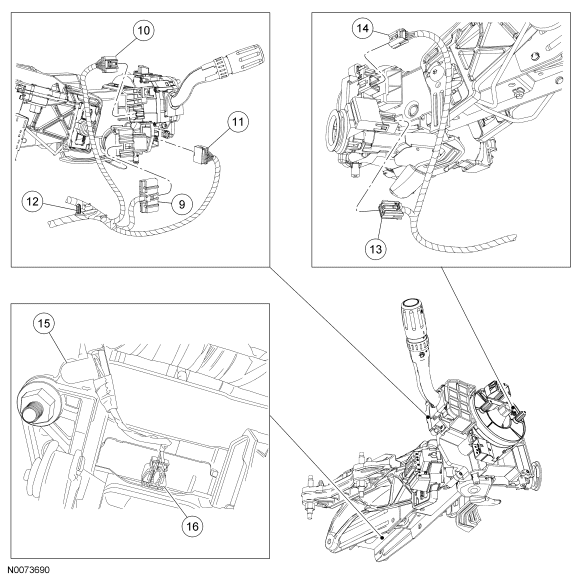

| Item |
Part Number |
Description |
| 9 |
- |
Ignition switch electrical connector (part of 14401) |
| 10 |
- |
Multi-function switch electrical connector (part of 14401) |
| 11 |
- |
Clockspring electrical connector (part of 14401) |
| 12 |
- |
Wiring harness retainer (part of 14401) |
| 13 |
- |
Passive anti-theft system (PATS) electrical connector (part of 14401) |
| 14 |
- |
Steering angle sensor electrical connector (part of 14401) |
| 15 |
- |
Wiring harness retainer (part of 14401) |
| 16 |
- |
Steering column adaptive load safety device electrical connector (part of 14401) |
