Clutch Switch: Service and Repair

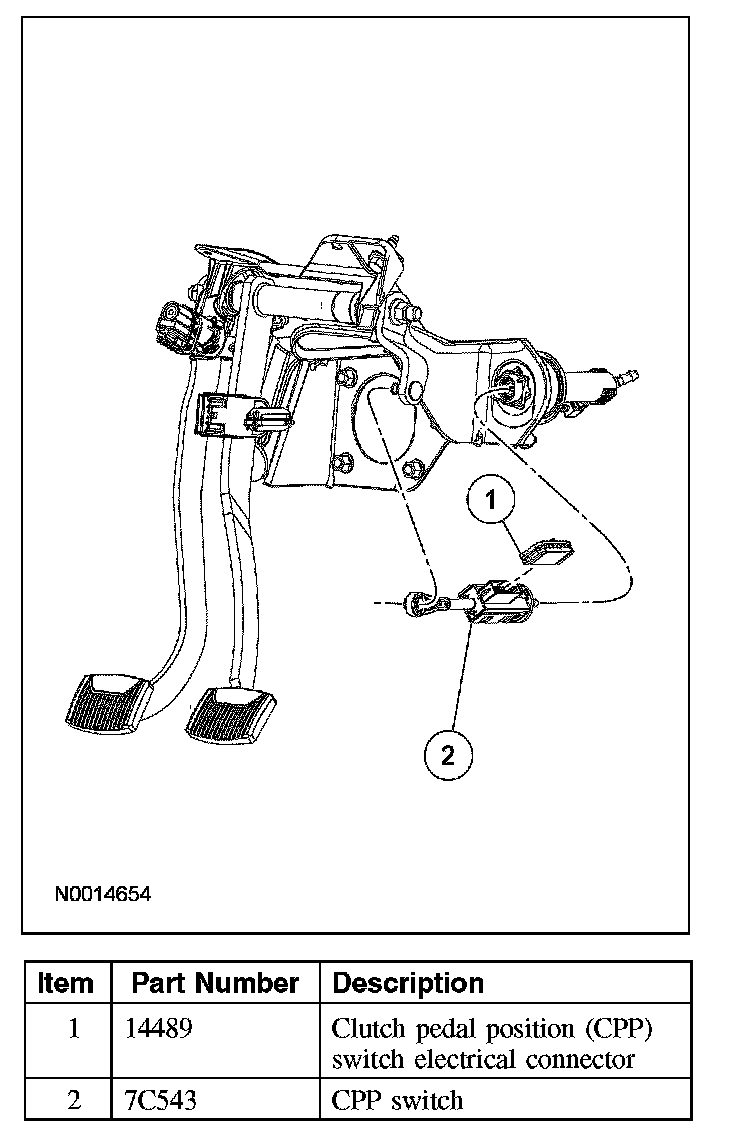

CLUTCH PEDAL POSITION (CPP) SWITCH







Removal and Installation
1. Disconnect the clutch pedal position (CPP) switch electrical connector.
2. Detach the pushrod from the clutch lever pin.
3. Remove the CPP switch.
4. To install, reverse the removal procedure.
