Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

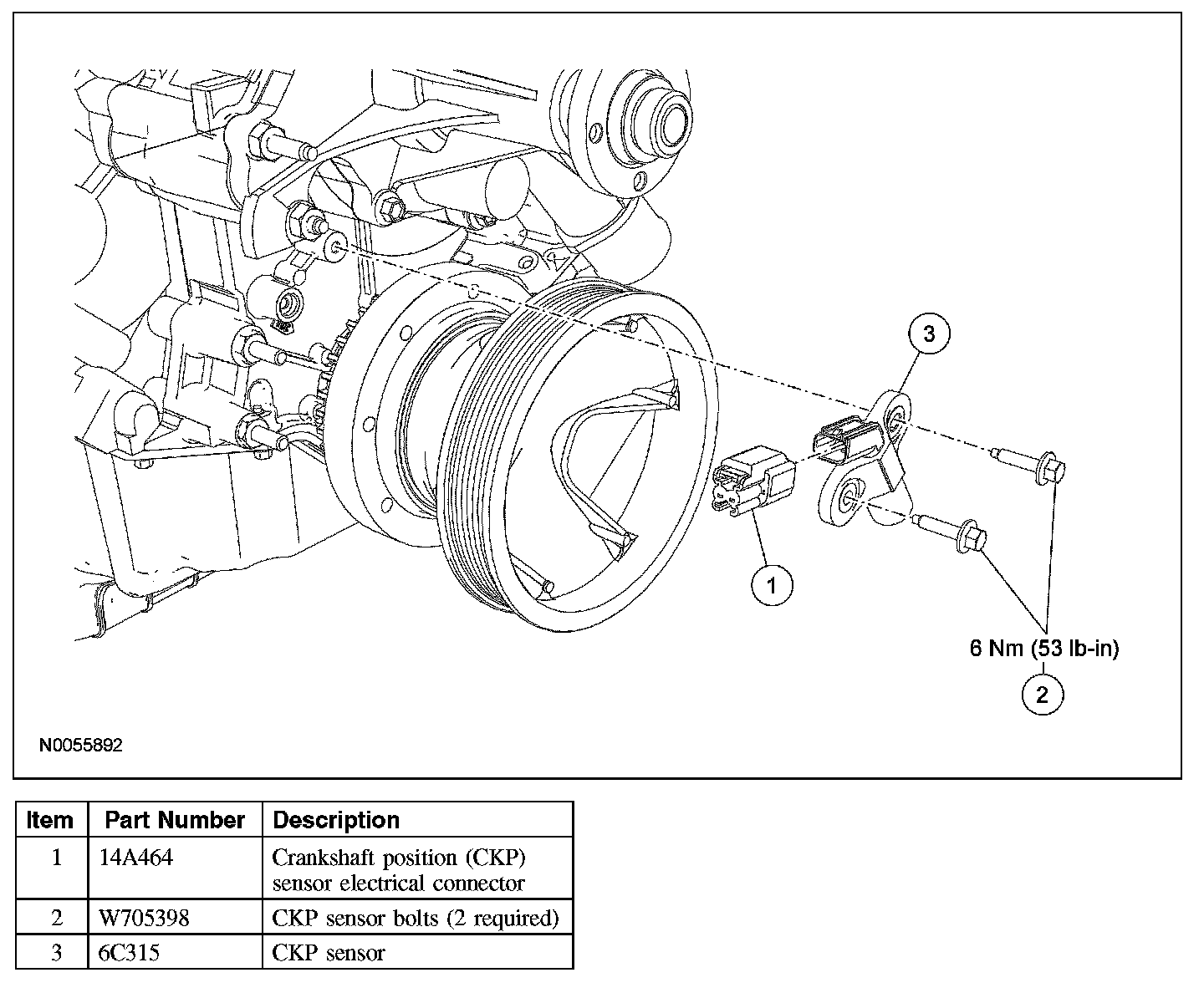

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the crankshaft position (CKP) sensor electrical connector.
3. Remove the bolts and the CKP sensor.
- To install, tighten to 6 Nm (53 lb-in).

4. To install, reverse the removal procedure.
