Window Control Switch - Front

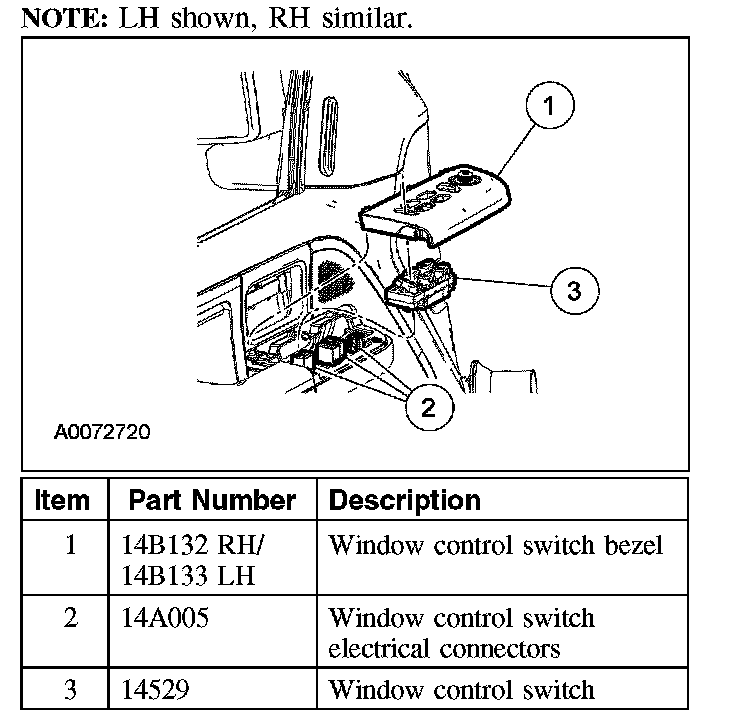

WINDOW CONTROL SWITCH - FRONT







Removal and Installation
1. Remove the window control switch bezel.
2. Disconnect the window control switch electrical connectors.
3. Remove the window control switch.
4. To install, reverse the removal procedure.
