Front Display Interface Module (FDIM)

FRONT DISPLAY INTERFACE MODULE (FDIM)

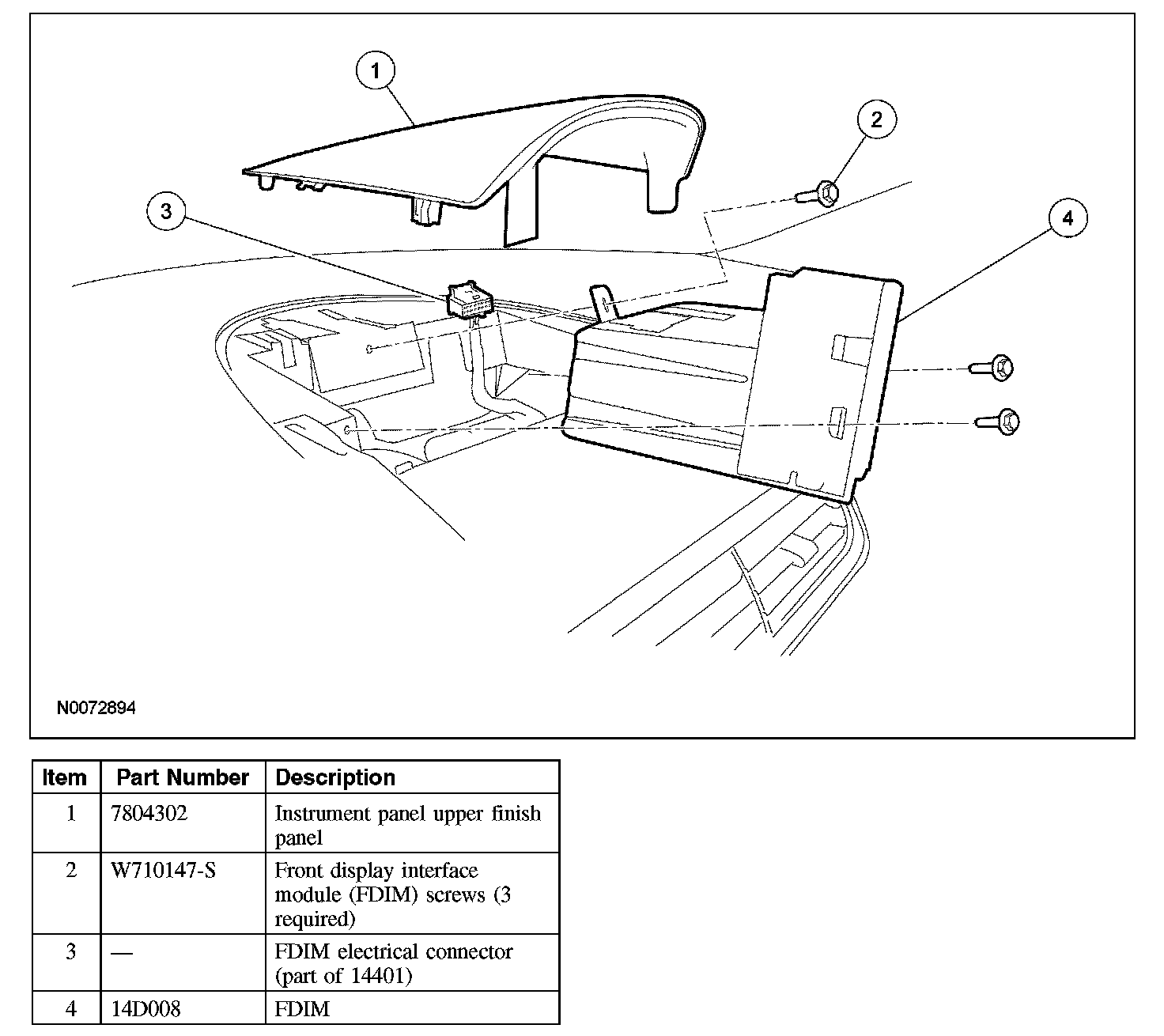

Removal and Installation
1. Remove the instrument panel upper finish panel by pulling straight up.
2. Remove the 3 front display interface module (FDIM) screws.
3. Remove the FDIM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
