Grille: Service and Repair

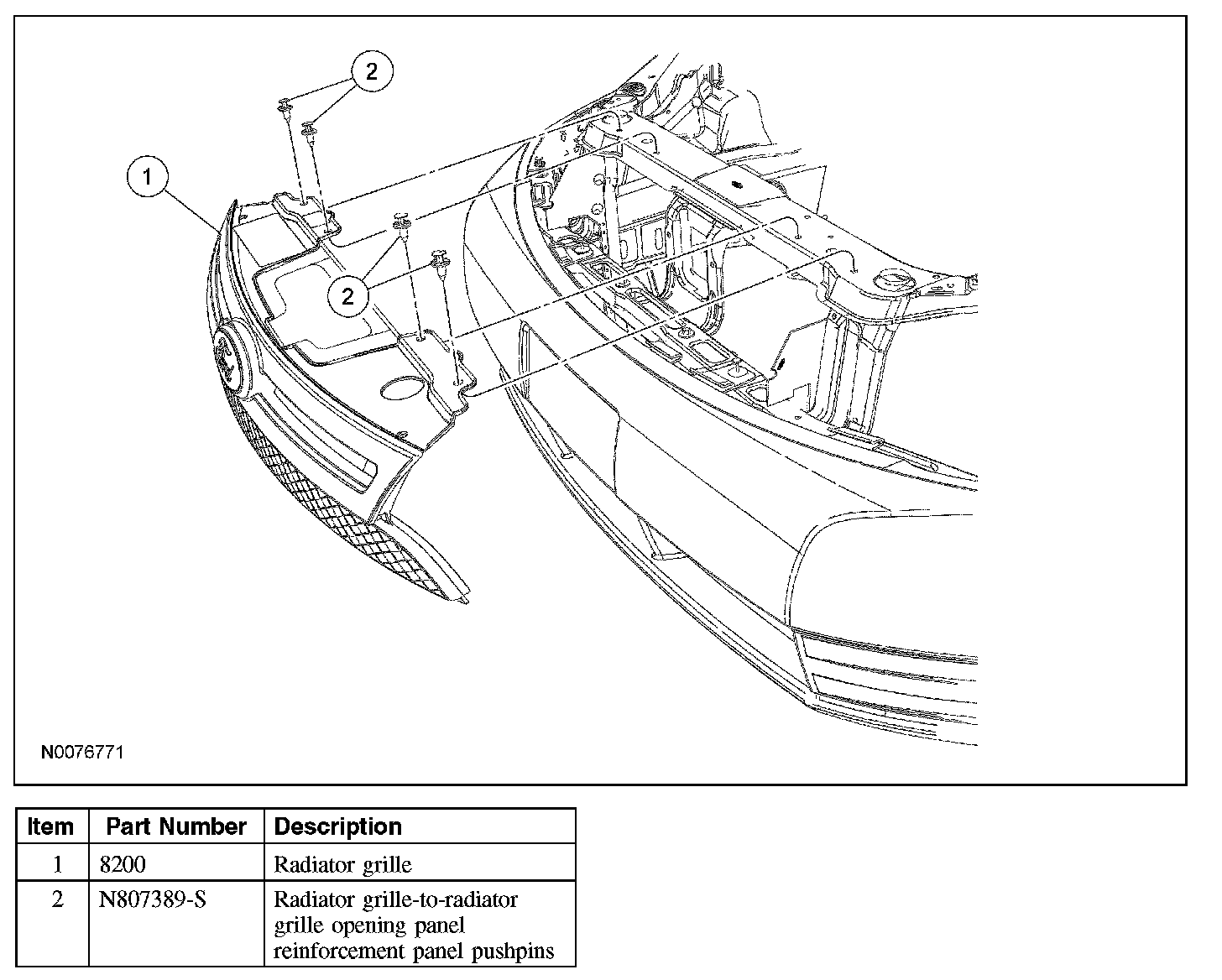

RADIATOR GRILLE







Removal and Installation
1. Remove the radiator grille-to-radiator grille opening panel reinforcement panel pushpins.
2. Disengage the radiator grille from the clips on the front bumper cover.
3. To install, reverse the removal procedure.
