Blower Motor: Service and Repair

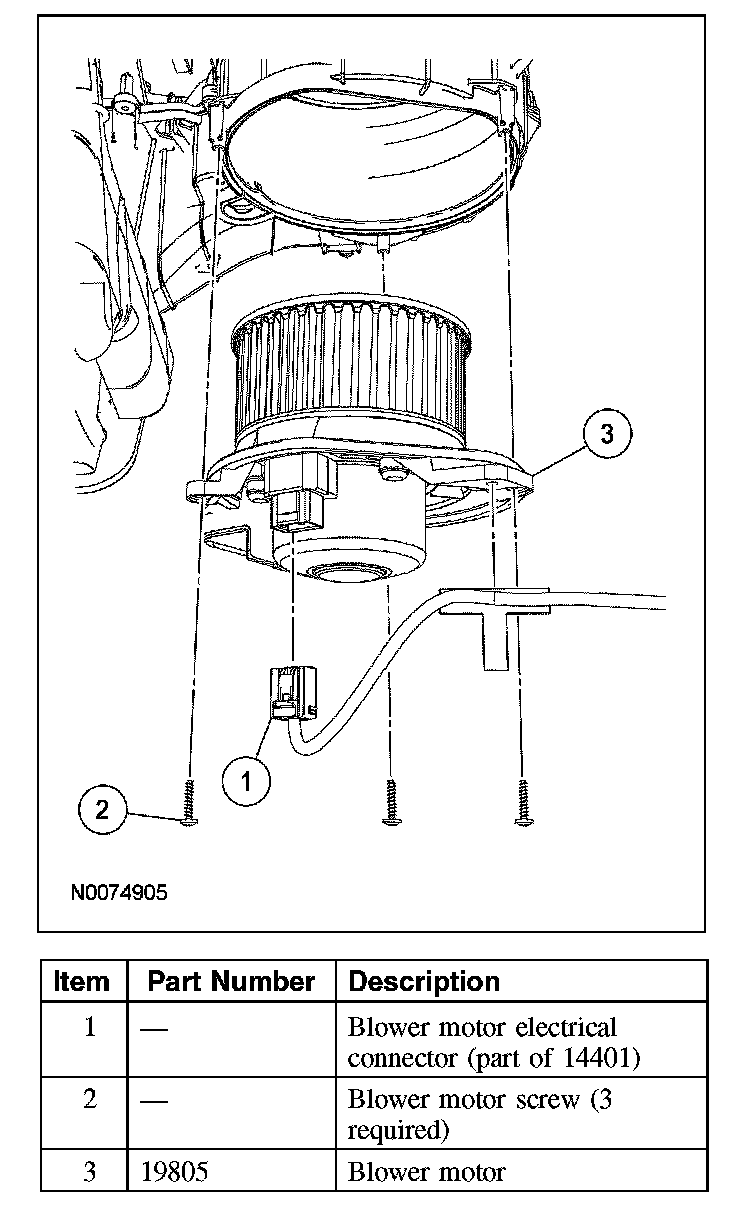

BLOWER MOTOR







Removal and Installation
1. Disconnect the blower motor electrical connector and detach the wire harness from the blower motor.
2. Remove the 3 blower motor screws.
3. Remove the blower motor.
4. To install, reverse the removal procedure.
