Emission Control Systems: Diagrams

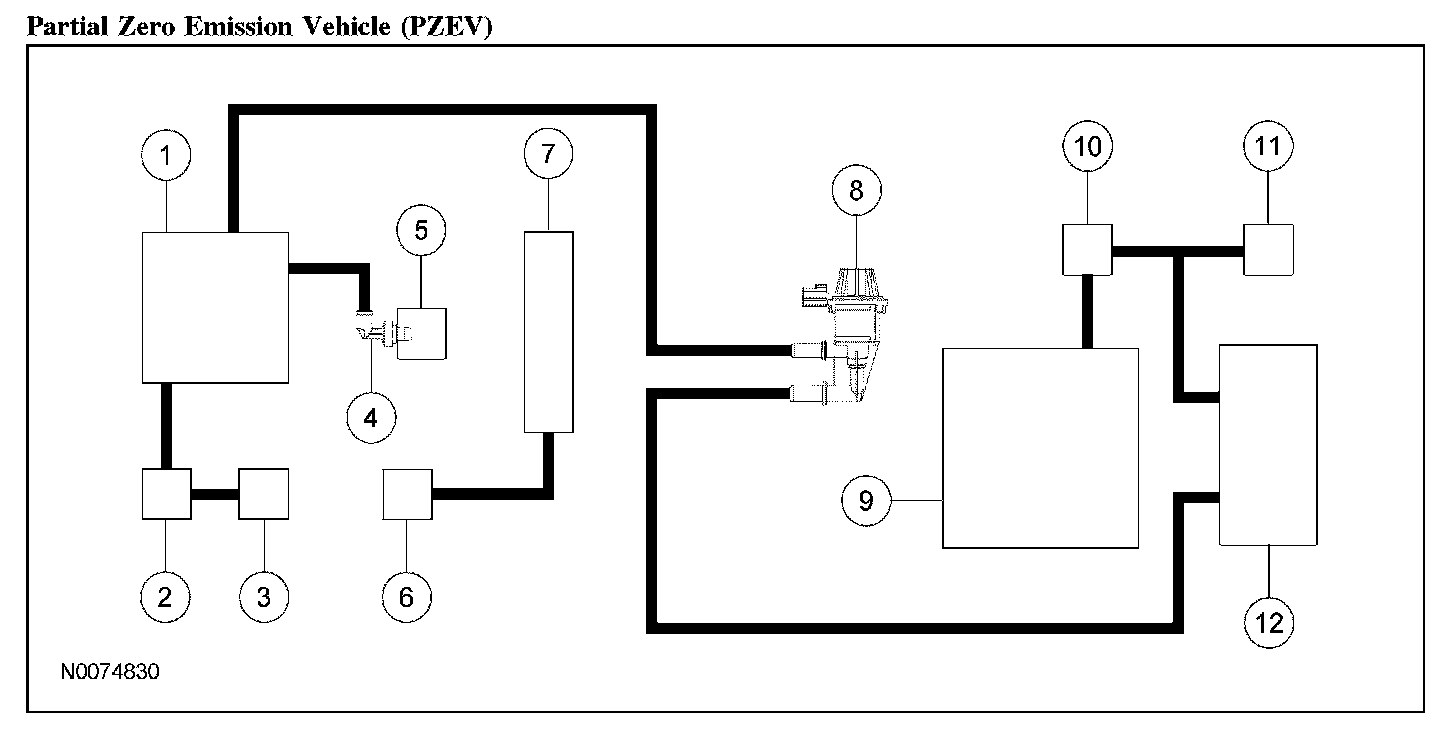

Partial Zero Emission Vehicle (PZEV) (Part 1):

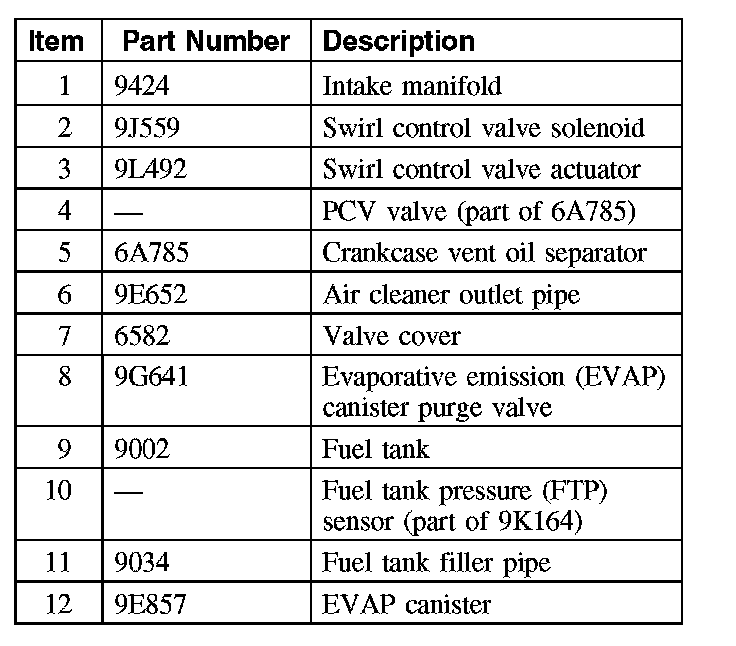

Partial Zero Emission Vehicle (PZEV) (Part 2):

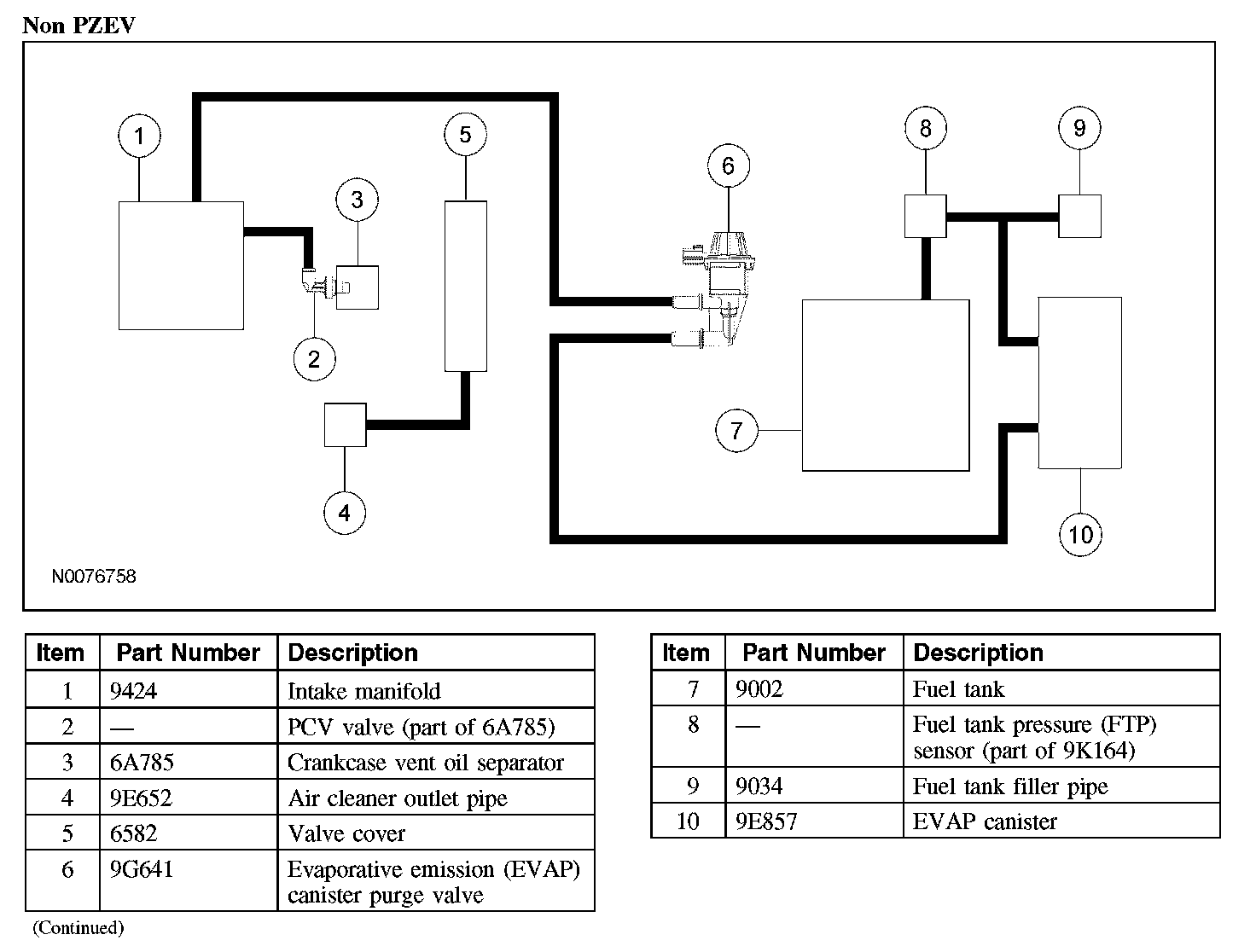

Non PZEV:
