Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

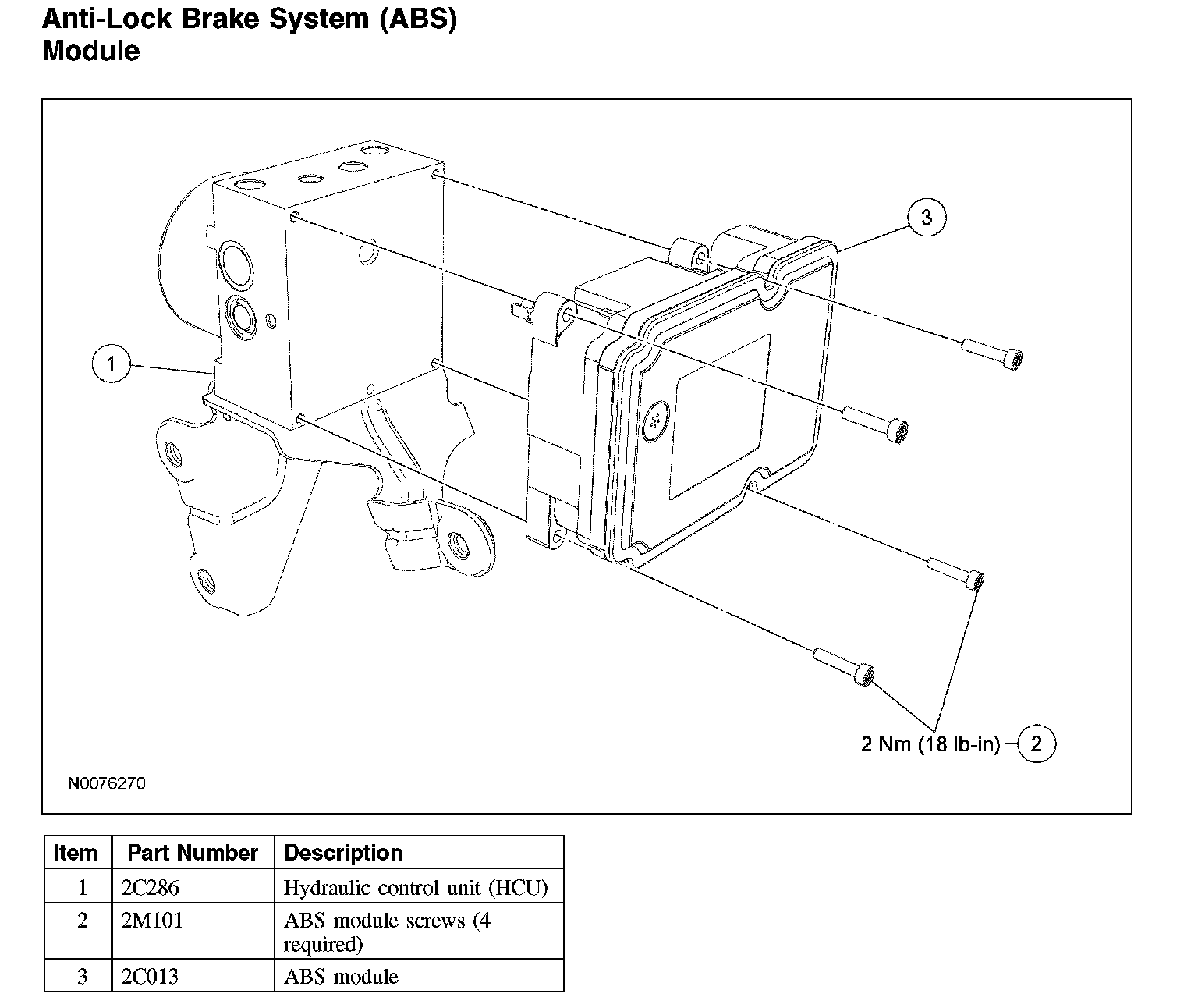

Anti-Lock Brake System (ABS) Module:

Removal and Installation
1. Remove the hydraulic control unit (HCU).
2. Remove the 4 ABS module-to-HCU screws and the ABS module.
^ To install, tighten to 2 Nm (18 lb-in).
3. To install, reverse the removal procedure.
