Reference: Band/Clutch Application Chart
Reference:
Band
/Clutch Application Chart

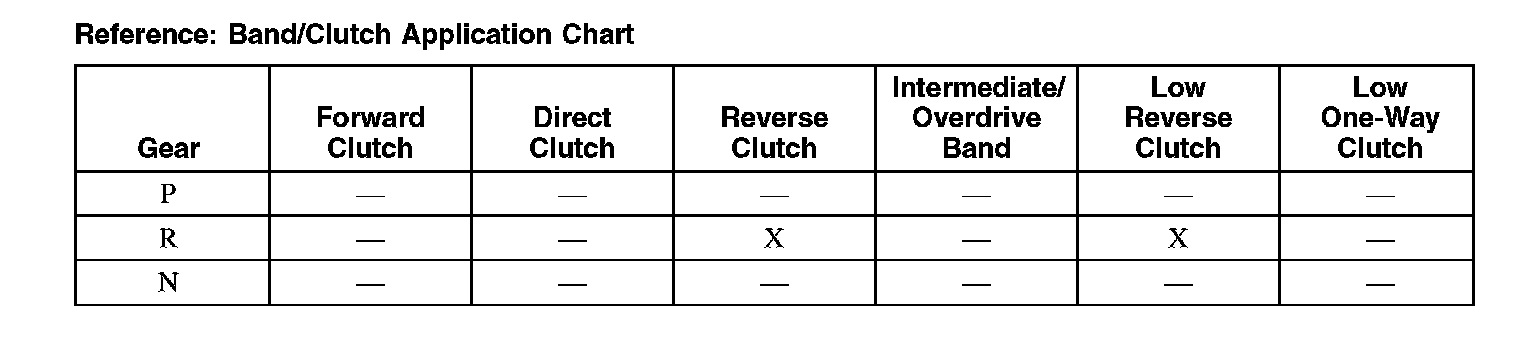

Reference: Band/Clutch Application Chart (Part 1):

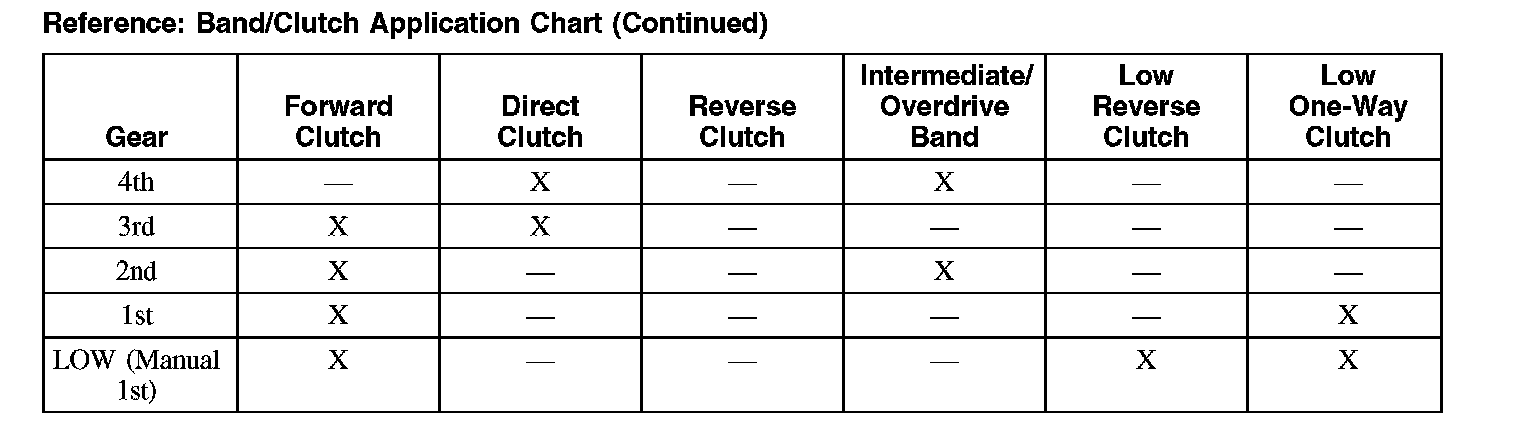

Reference: Band/Clutch Application Chart (Part 2):
