Blower Motor: Service and Repair

BLOWER MOTOR







Removal and Installation

MKZ vehicles
1. Remove the RH lower instrument panel insulator.

All vehicles

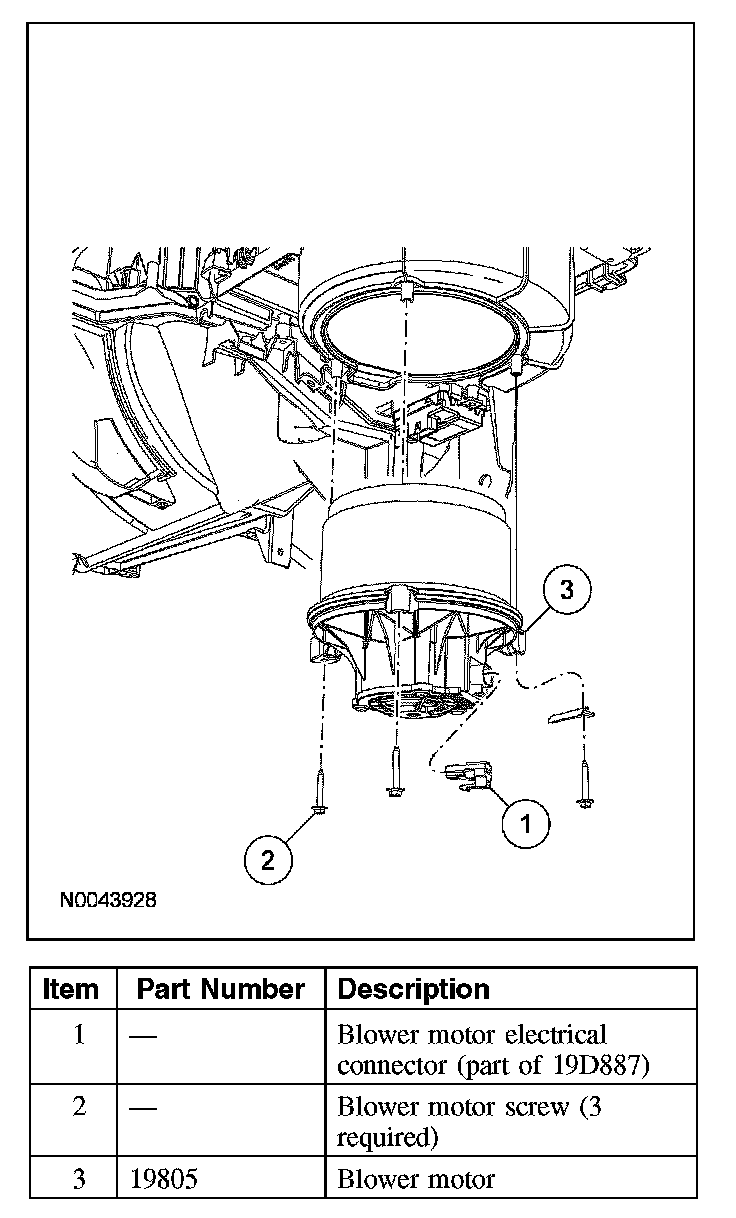

2. Disconnect the blower motor electrical connector.
3. Remove the 3 blower motor screws.
4. Remove the blower motor.
5. To install, reverse the removal procedure.
