Cabin Temperature Sensor / Switch: Service and Repair

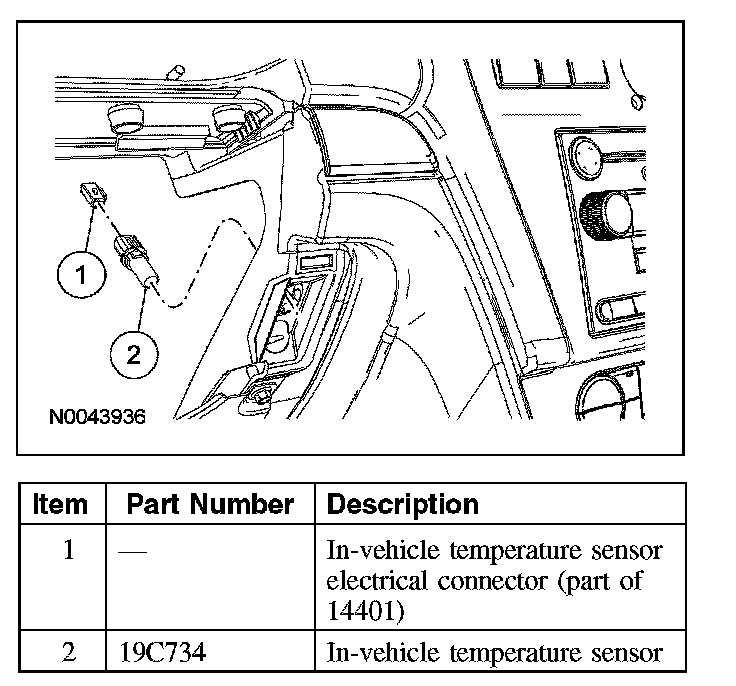

IN-VEHICLE TEMPERATURE SENSOR







Removal and Installation
1. Remove the lower steering column cover screws.
2. Remove the lower steering column shroud.
3. Disconnect the in-vehicle temperature sensor electrical connector.
4. Remove the in-vehicle temperature sensor.
5. To install, reverse the removal procedure.
