Condenser HVAC: Service and Repair

CONDENSER CORE

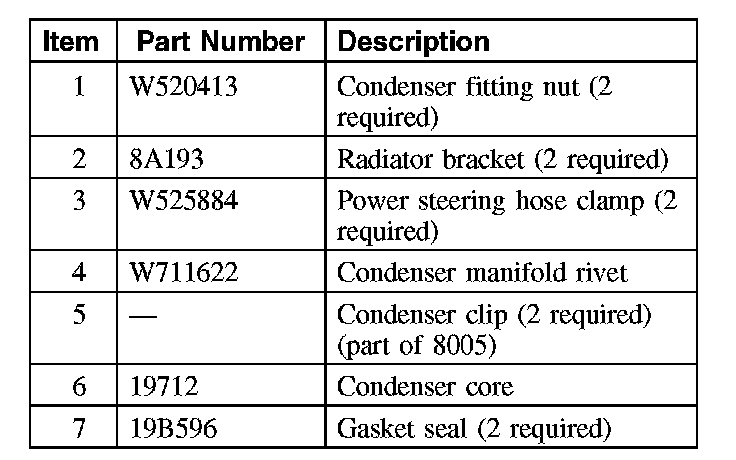

Part 1:

Part 2:

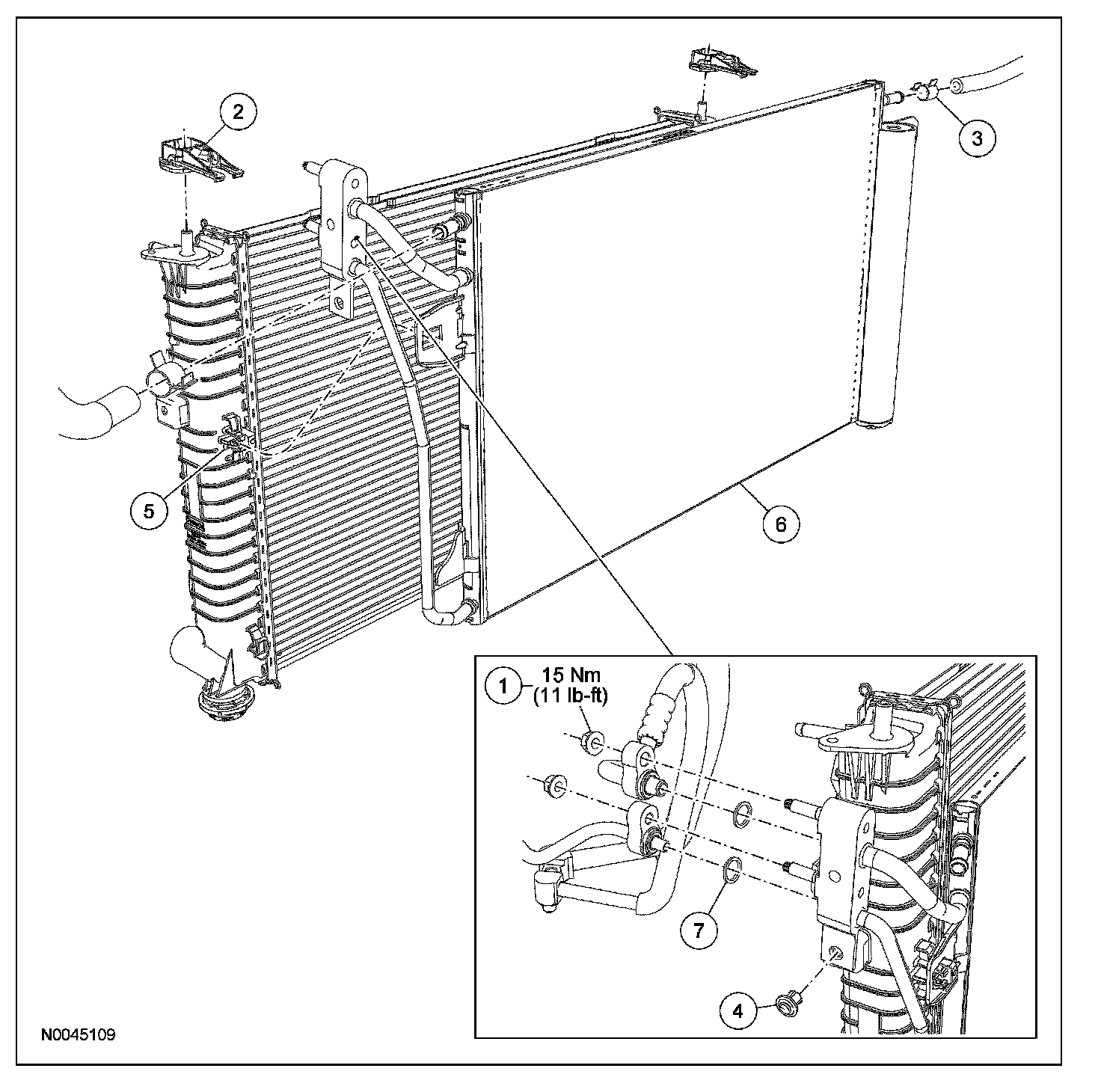

Removal and Installation

NOTE: New A/C condenser service parts are shipped with a new receiver/drier cartridge installed in the integral receiver/drier.

1. Recover the refrigerant.
2. With the vehicle in NEUTRAL position it on a hoist.
3. Remove the cooling fan.
4. Remove the washer reservoir filler neck bolt.
5. Remove the 2 condenser fitting nuts and disconnect the fittings.
- Discard the gasket seals.
- To install, tighten to 15 Nm (11 lb-ft).

6. Unclip the 2 radiator brackets from the radiator core support and position the cooling module rearward.
7. Remove the 2 radiator brackets.

8. NOTE: Position a drain pan underneath each power steering hose connection.

Release the 2 power steering hose clamps at the condenser and disconnect the hoses.

9. Remove the condenser manifold rivet.
10. Release the 2 condenser clips at the radiator and detach the condenser from the radiator.
11. Remove the condenser core.
12. To install, reverse the removal procedure.
- Install new gasket seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

13. Fill the power steering system.
14. Evacuate, leak test and charge the refrigerant system.
