Tests DS: Air Conditioning Pressure (ACP) Transducer Sensor

PINPOINT TEST DS: AIR CONDITIONING PRESSURE (ACP) TRANSDUCER SENSOR

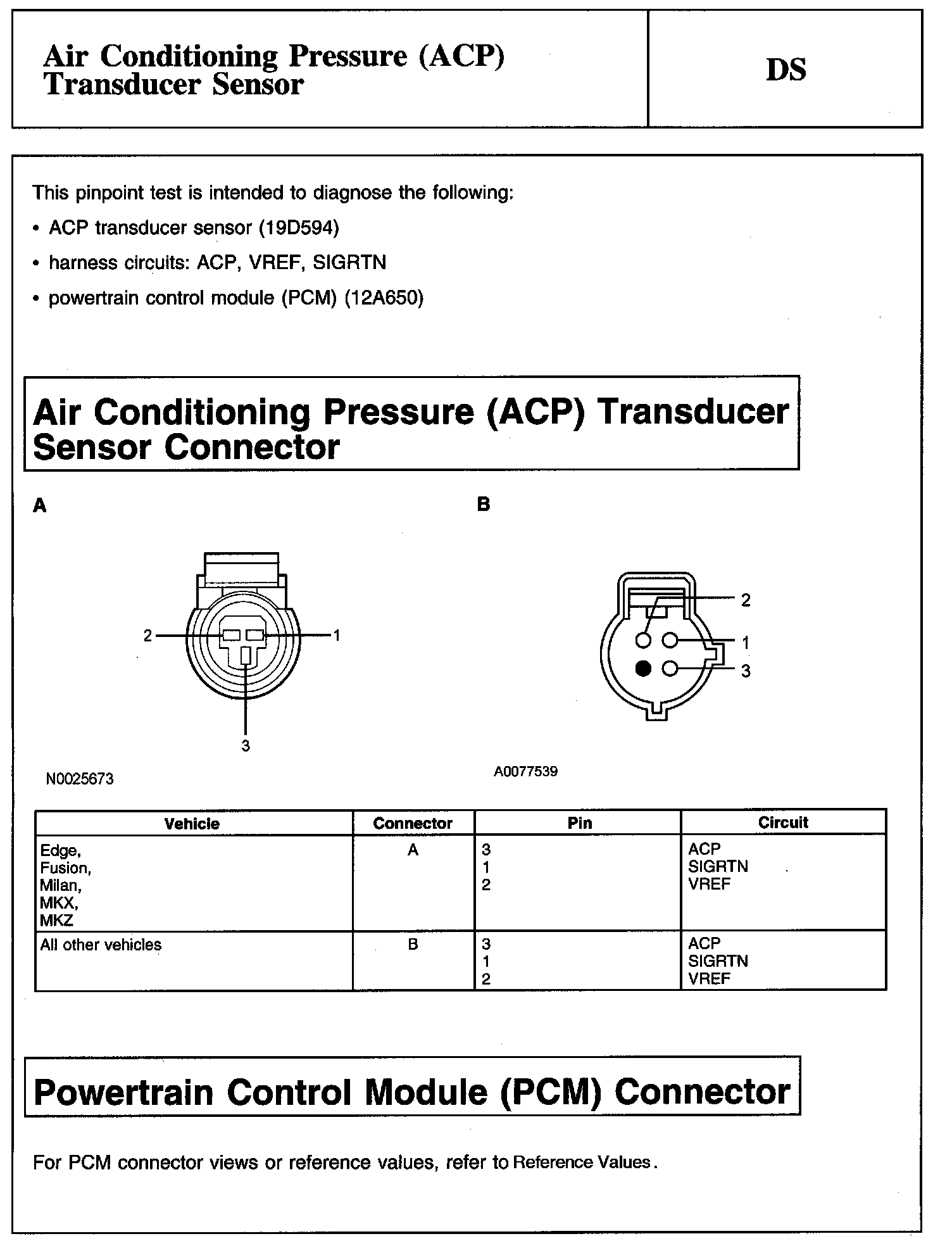

Description, Air Conditioning Pressure (ACP) Transducer Sensor Connector And Powertrain Control Module (PCM) Connector:

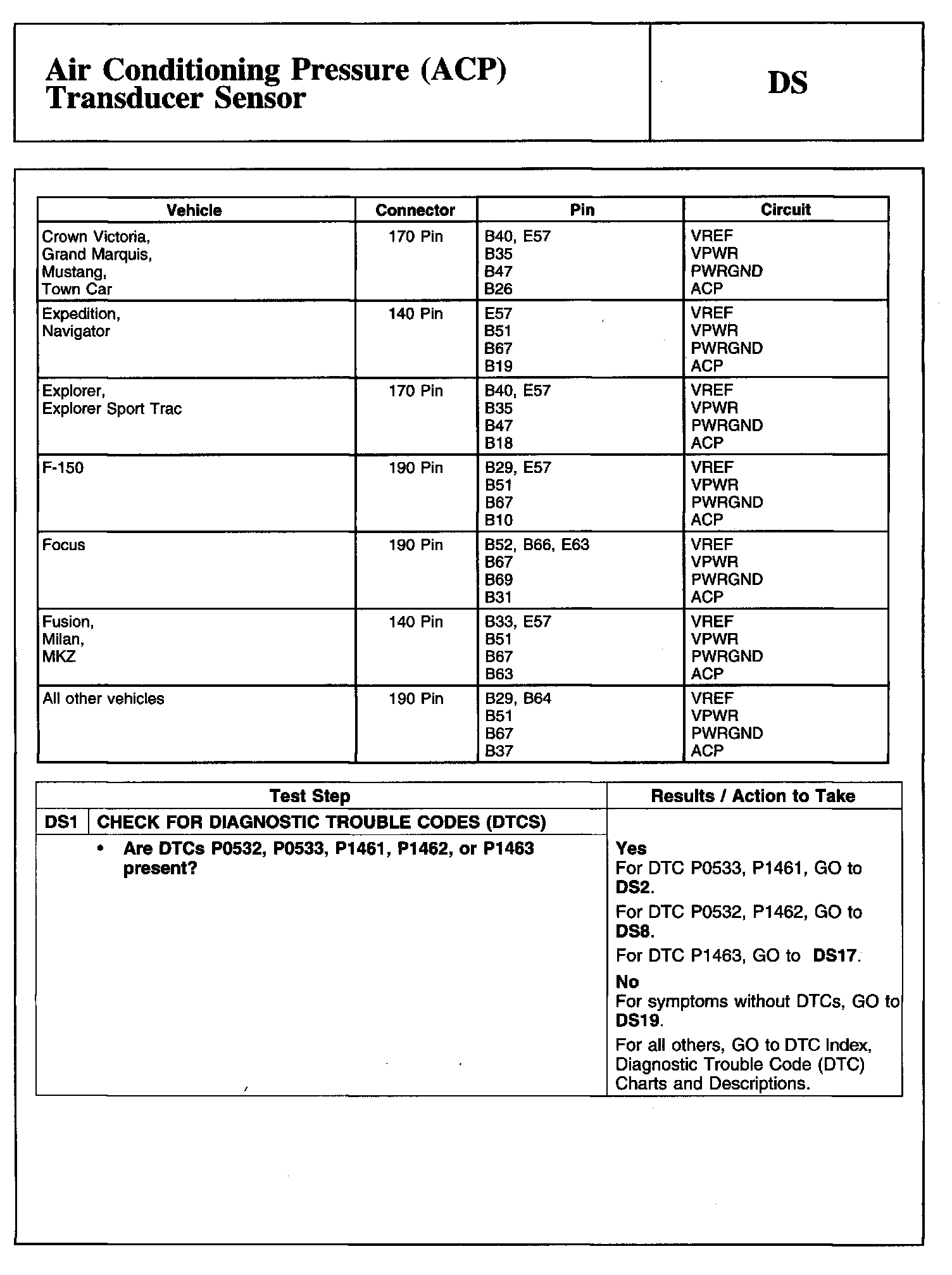

DS1:

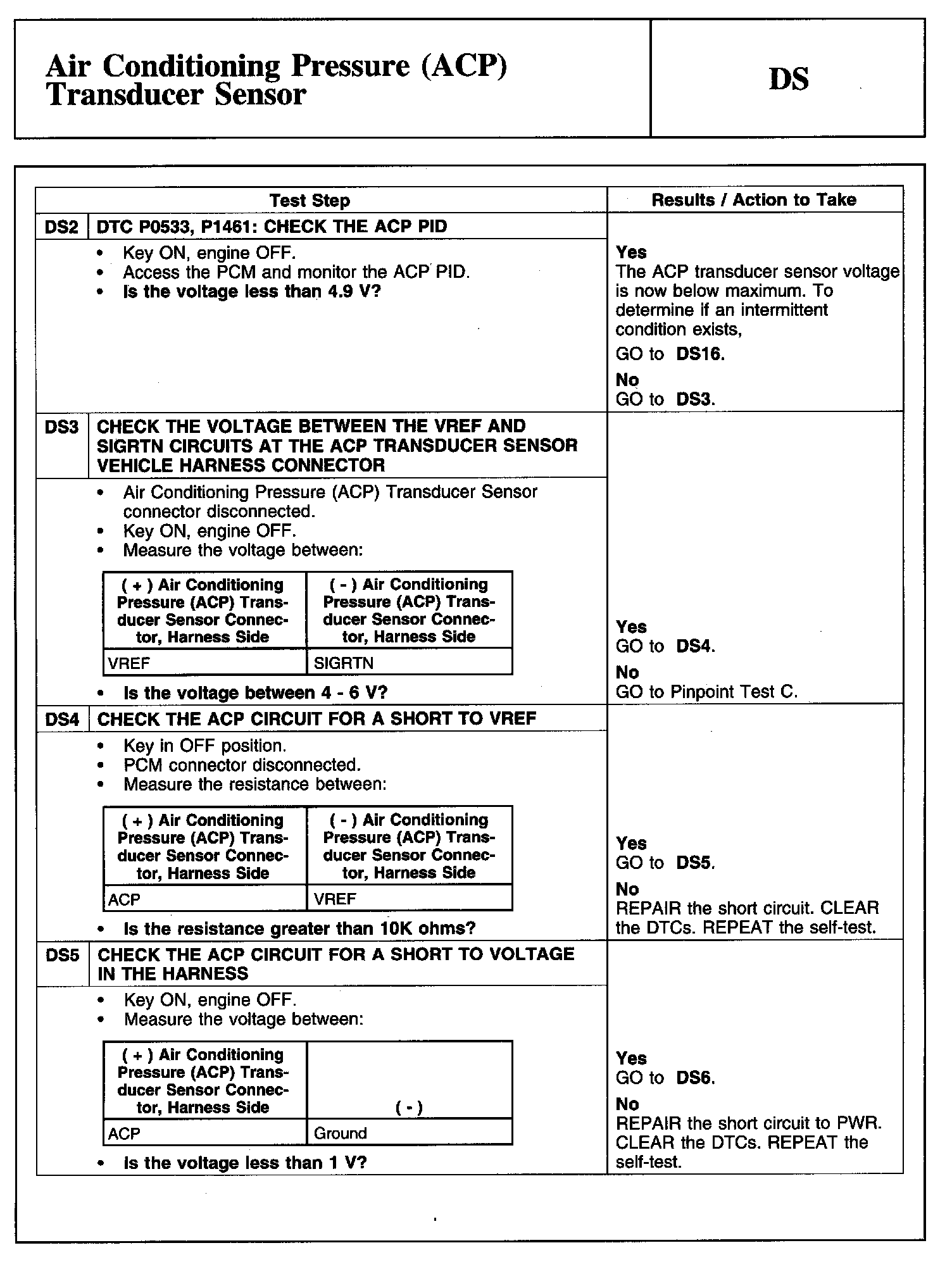

DS2-DS5:

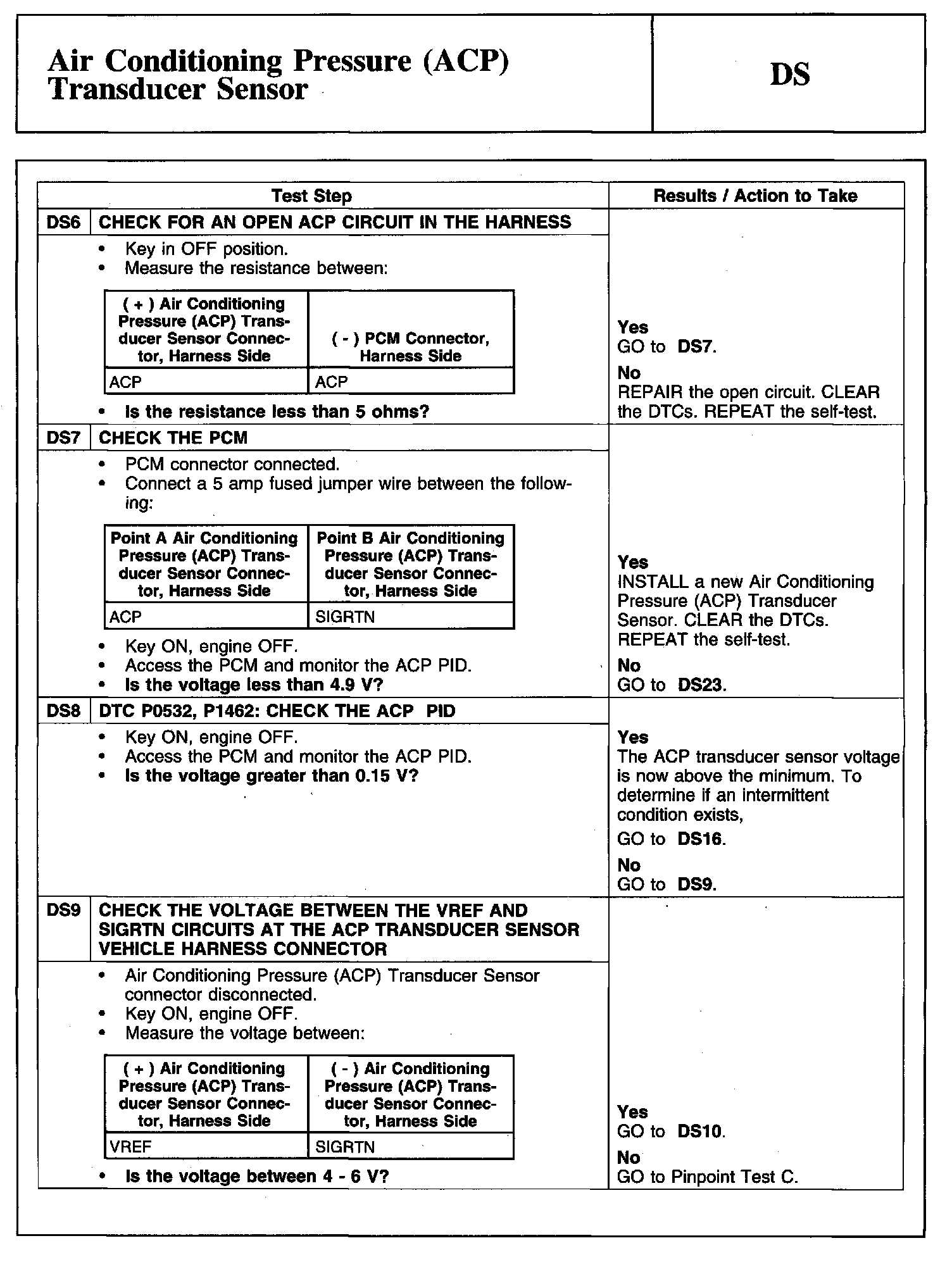

DS6-DS9:

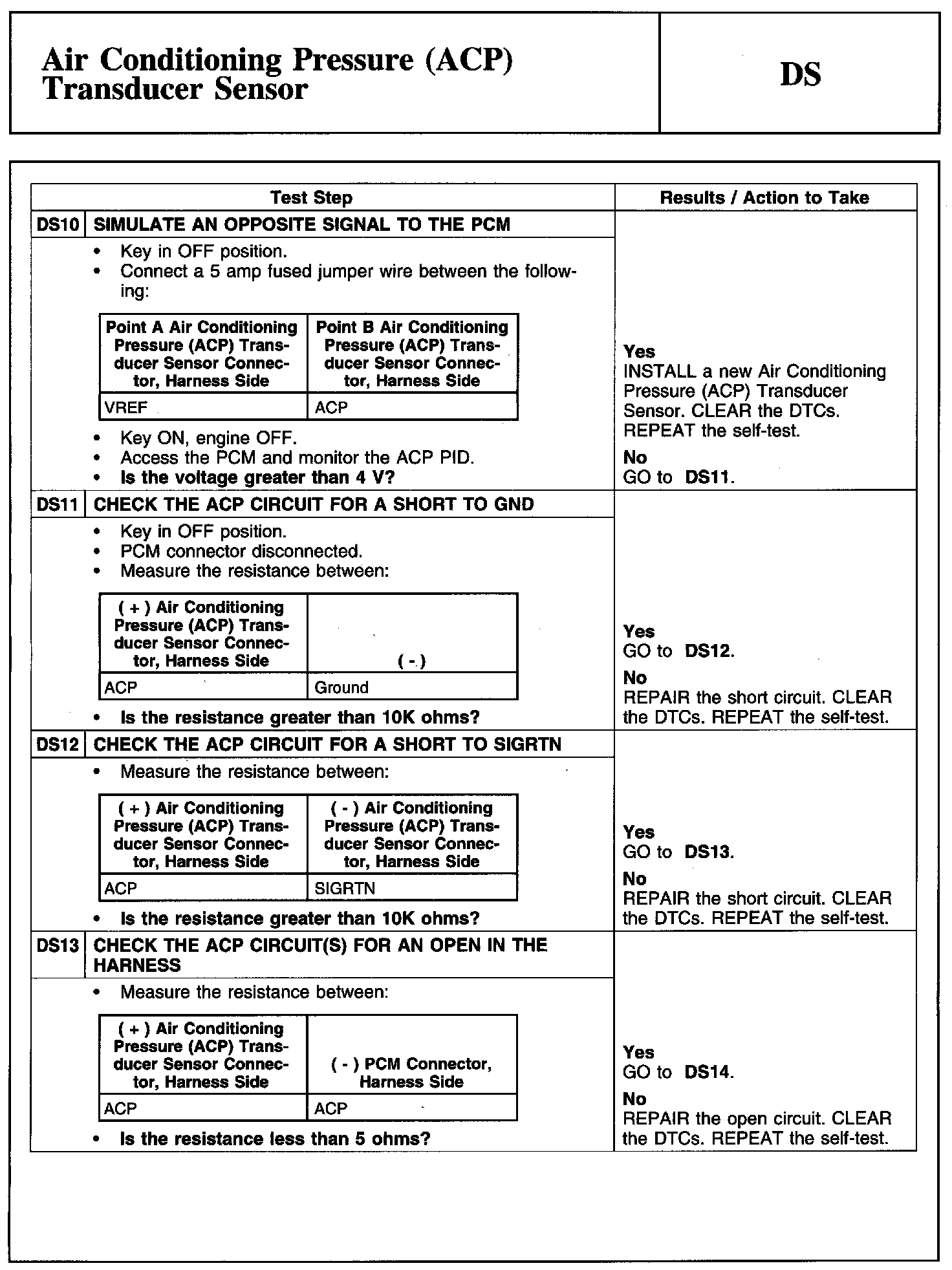

DS10-DS13:

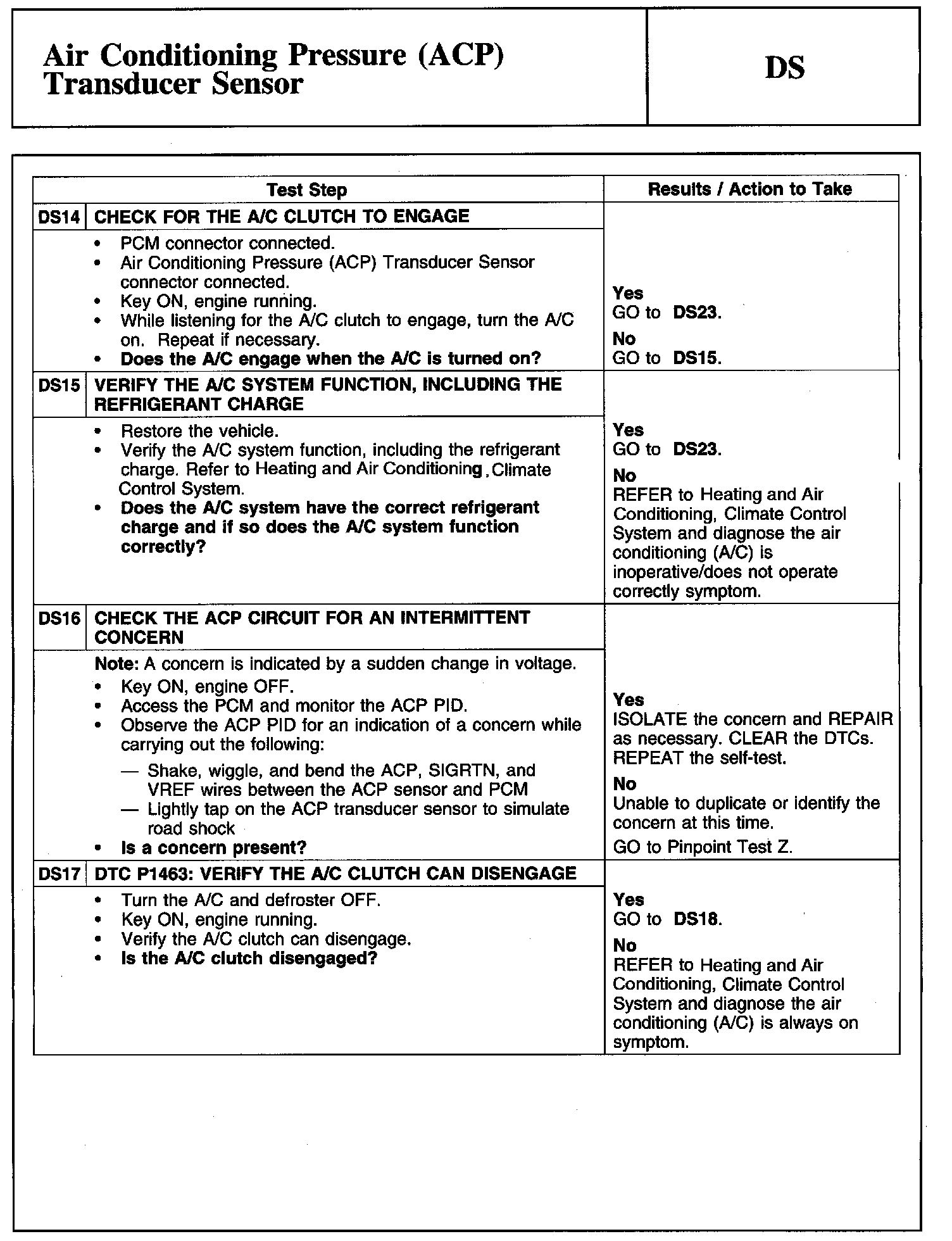

DS14-DS17:






DS18-DS19:

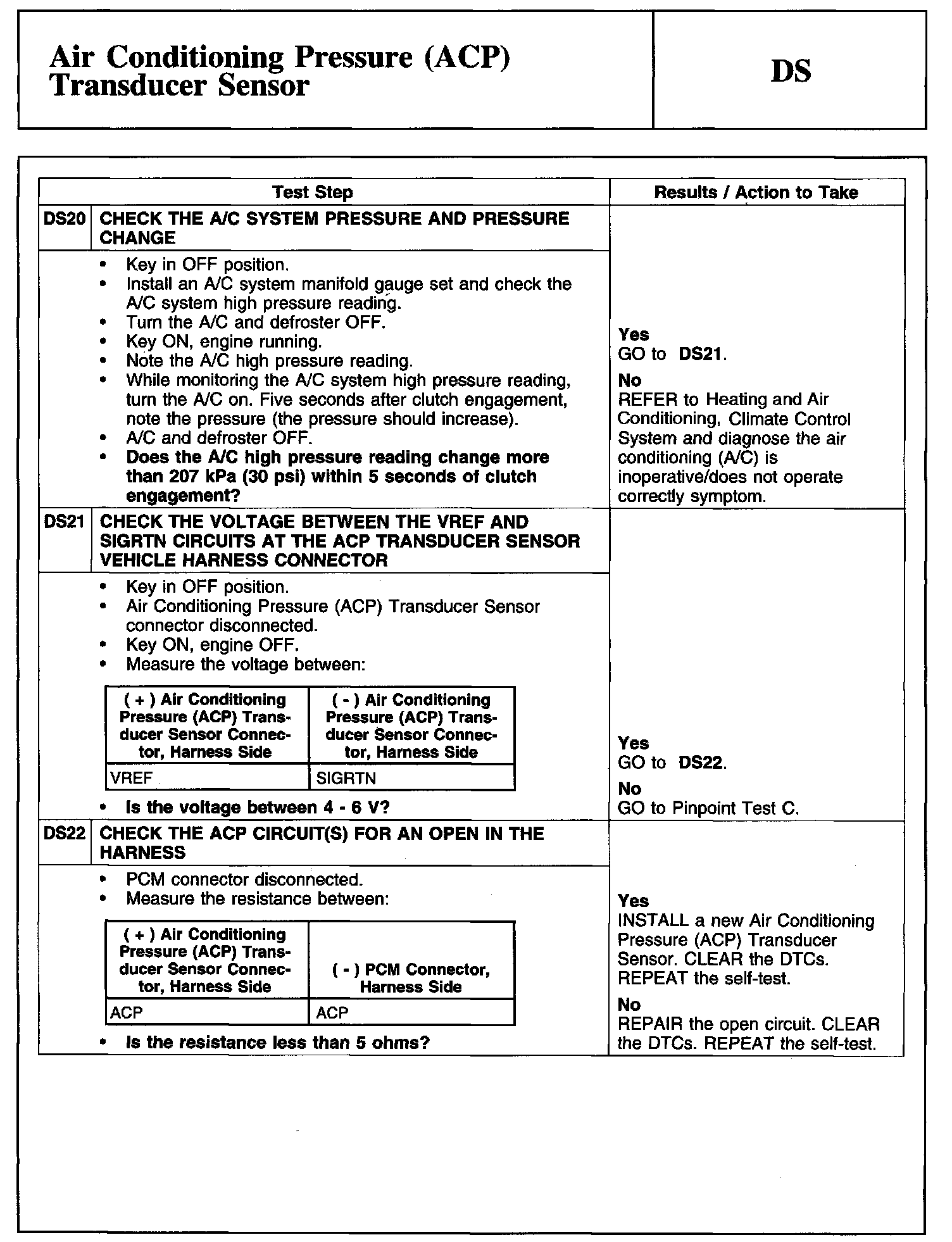

DS20-DS22:

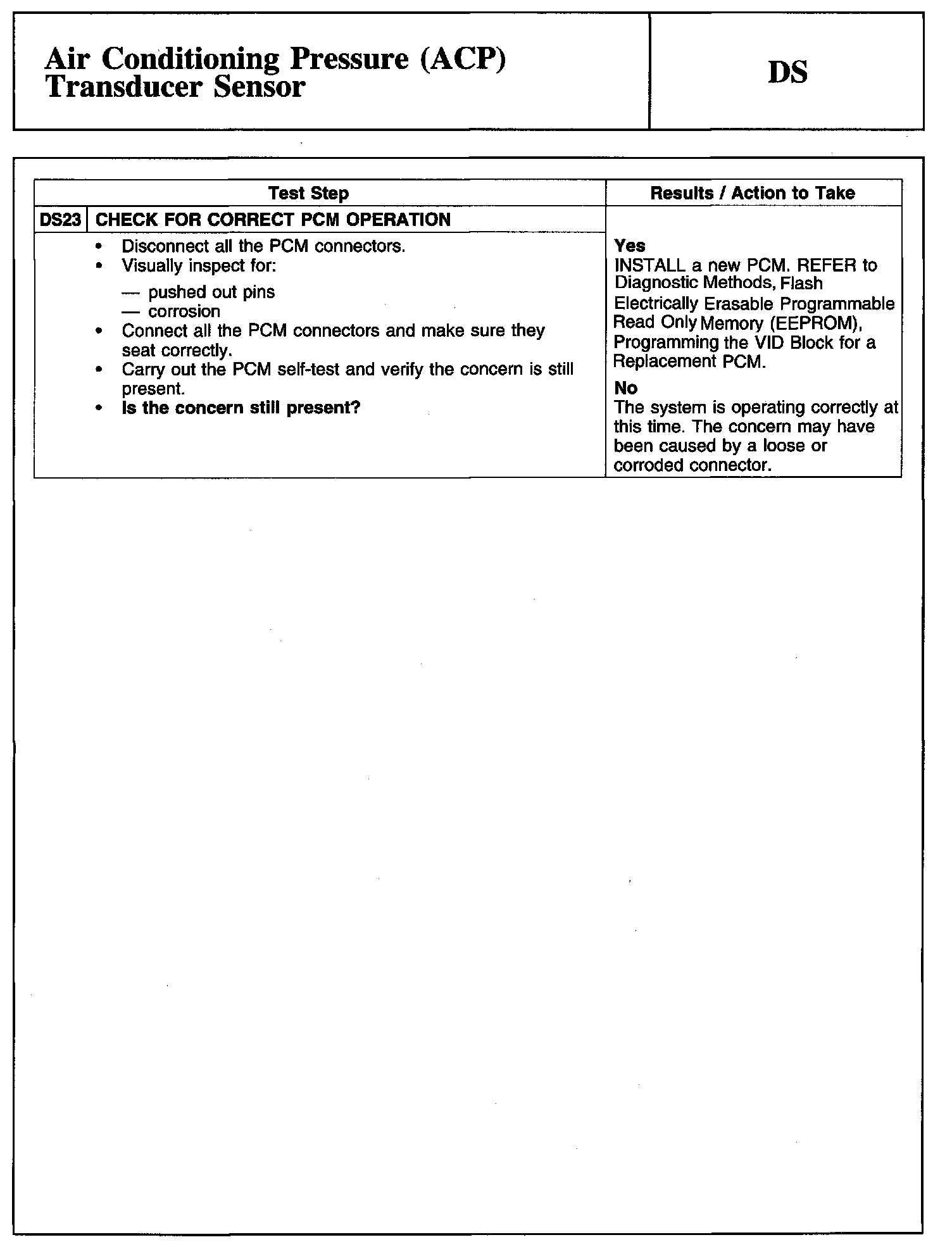

DS23:
