Parking Assist Control Module: Service and Repair

PARKING AID MODULE







Removal and Installation
1. Remove the LH side C-pillar trim panel.
2. Remove the LH rear seat bolster.

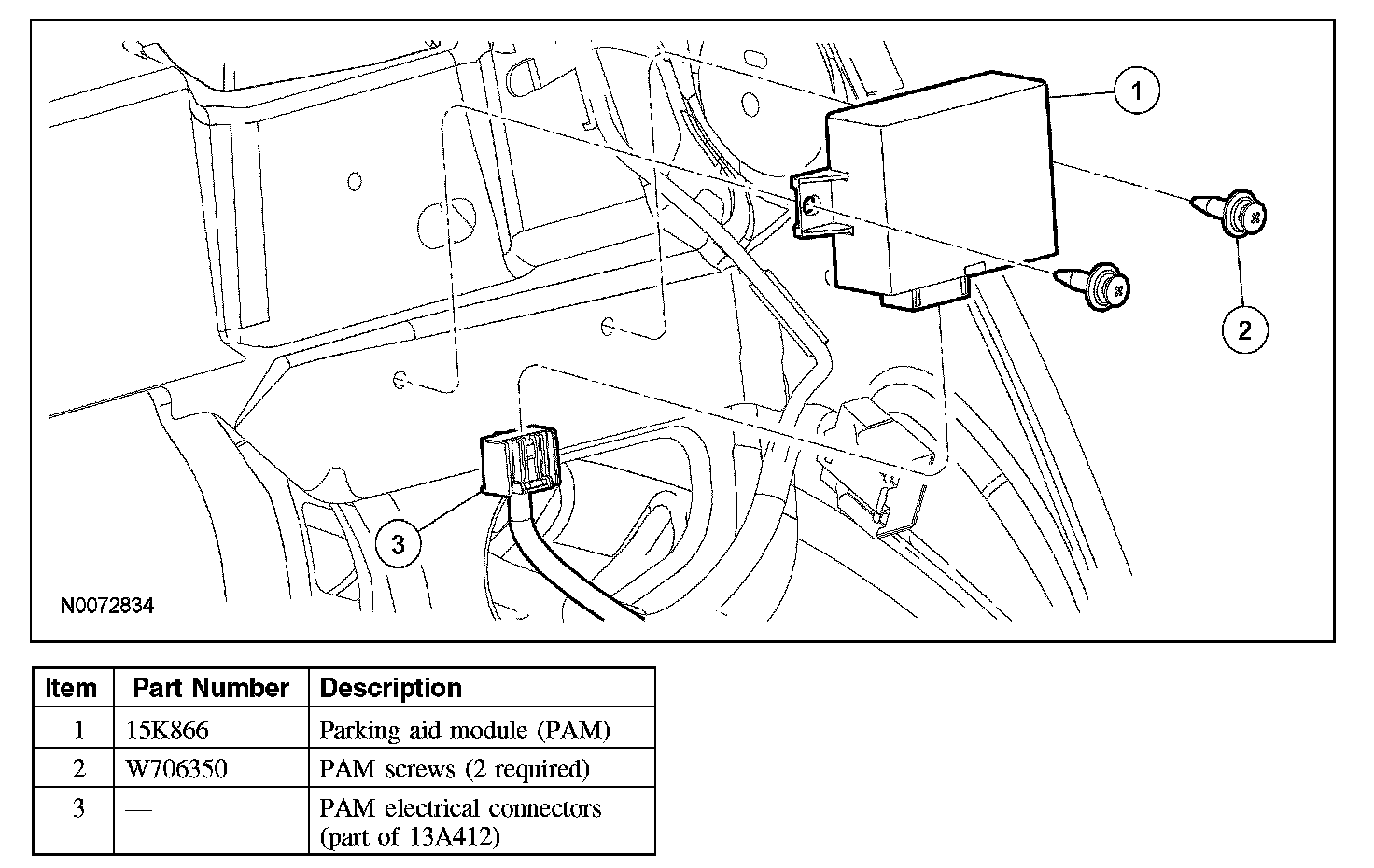

3. Remove the 2 screws and the parking aid module (PAM).
- Disconnect the PAM electrical connectors.

4. To install, reverse the removal procedure.
