Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR







Removal and Installation

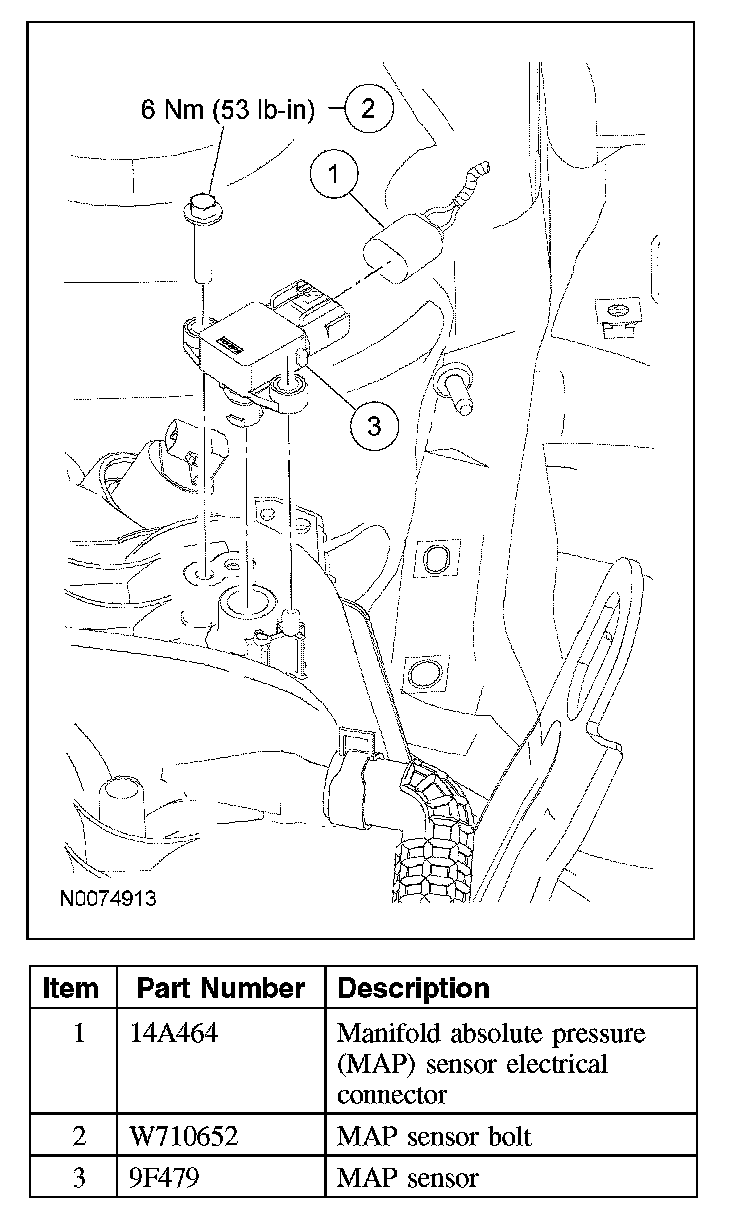

1. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.
2. Remove the bolt and the MAP sensor.
- To install, tighten to 6 Nm (53 lb-in).
- When installing the sensor, if the bolt fails to hold specified torque, relocate the sensor and retain, using the auxiliary bolt hole in the intake manifold.

3. NOTE: Clean and inspect the sealing surface.

To install, reverse the removal procedure.
