Drive Belt: Service and Repair

Accessory Drive Belt

Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

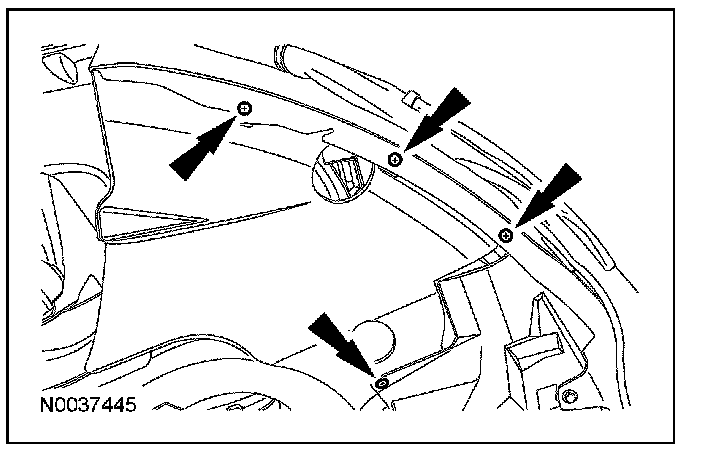

2. Remove the 4 screws and position the RH fender splash shield aside.





3. Remove the 6 pin-type retainers and the RH splash shield.

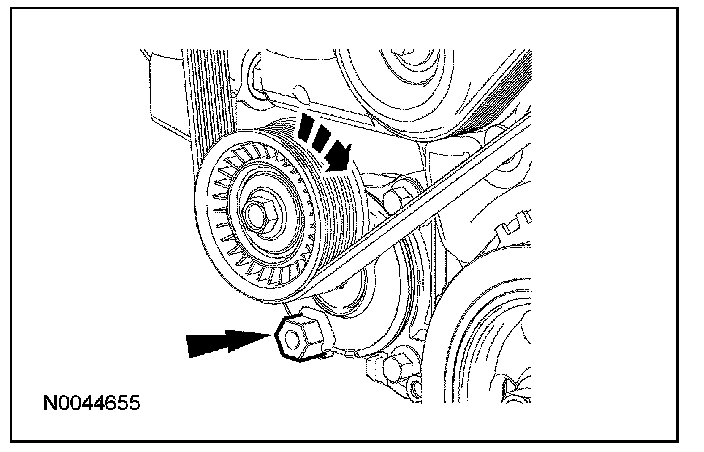

4. Using the hex feature, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the coolant pump pulley.
^ Remove the accessory drive belt from the engine.





5. To install, reverse the removal procedure.
