Audio Control Module Connector

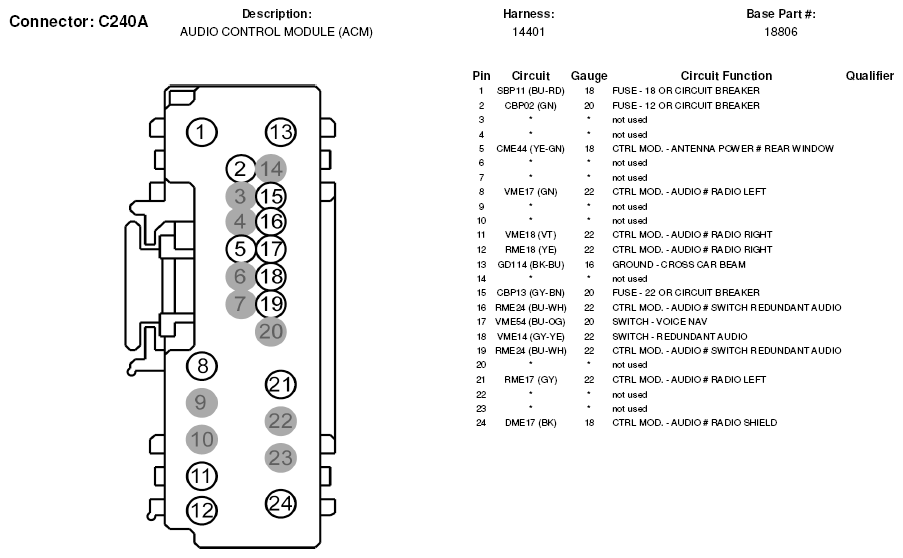

Fig 1: Audio Control Module Connector End View (C240A)

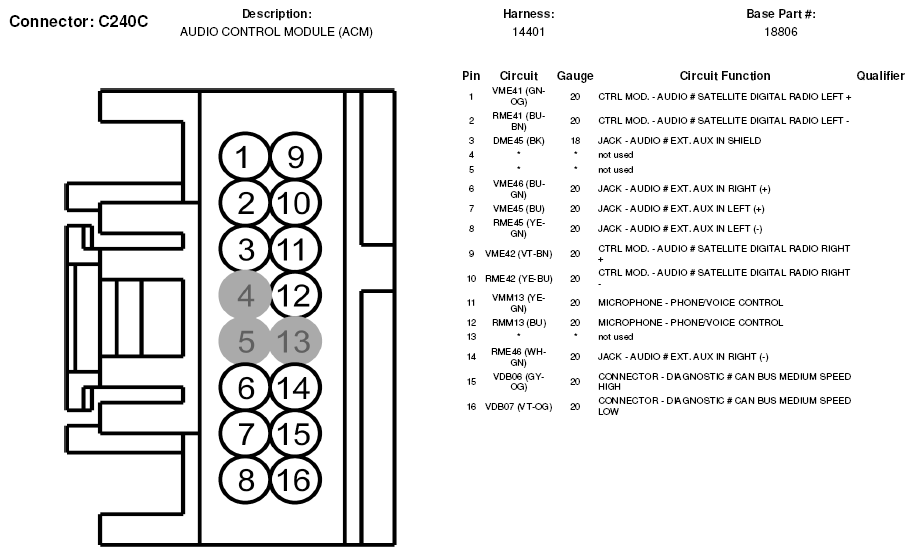

Fig 2: Audio Control Module Connector End View (C240C)

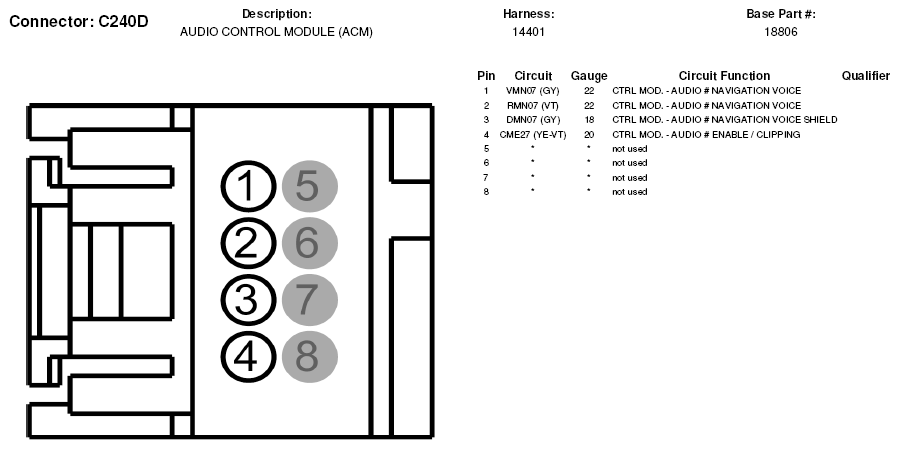

Fig 3: Audio Control Module Connector End View (C240D)

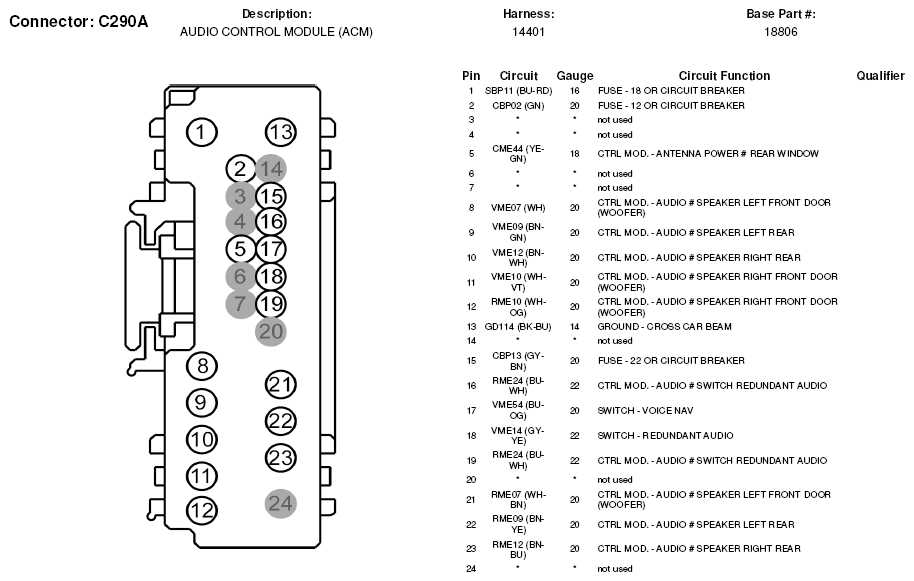

Fig 4: Audio Control Module Connector End View (C290A)

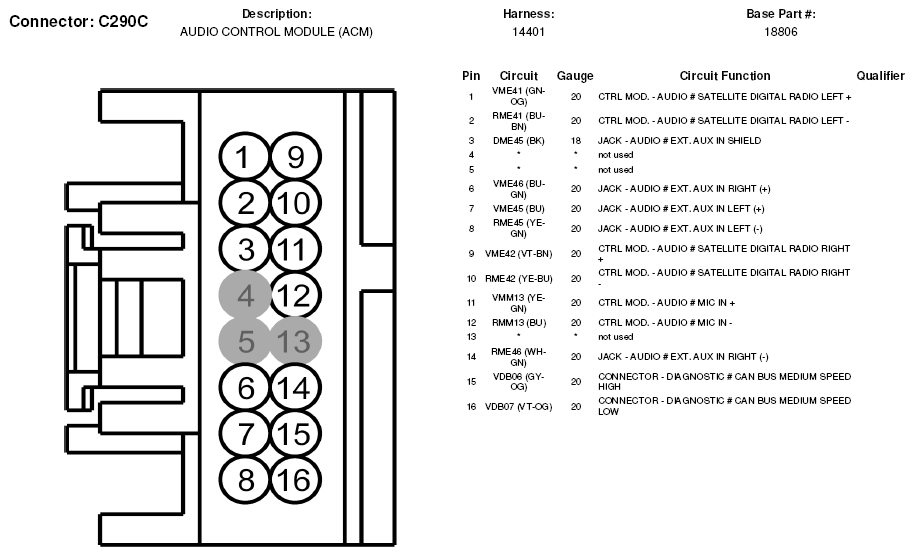

Fig 5: Audio Control Module Connector End View (C290C)

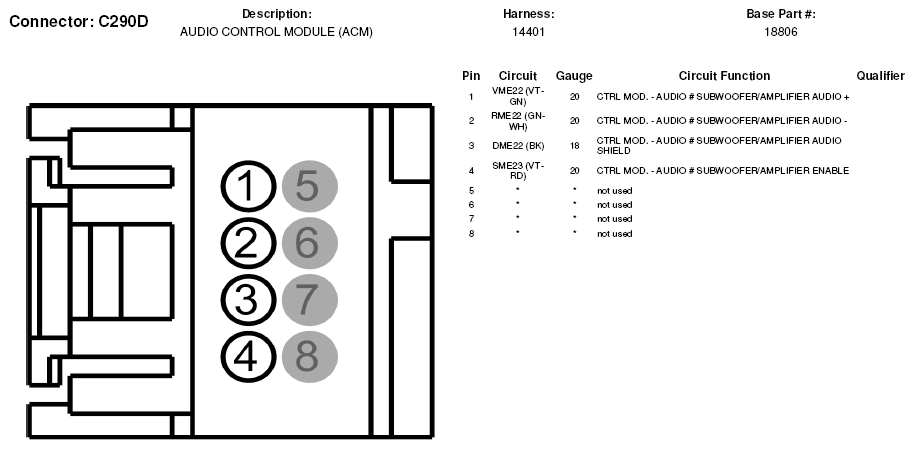

Fig 6: Audio Control Module Connector End View (C290D)
