Audio Digital Signal Processing Module Connector

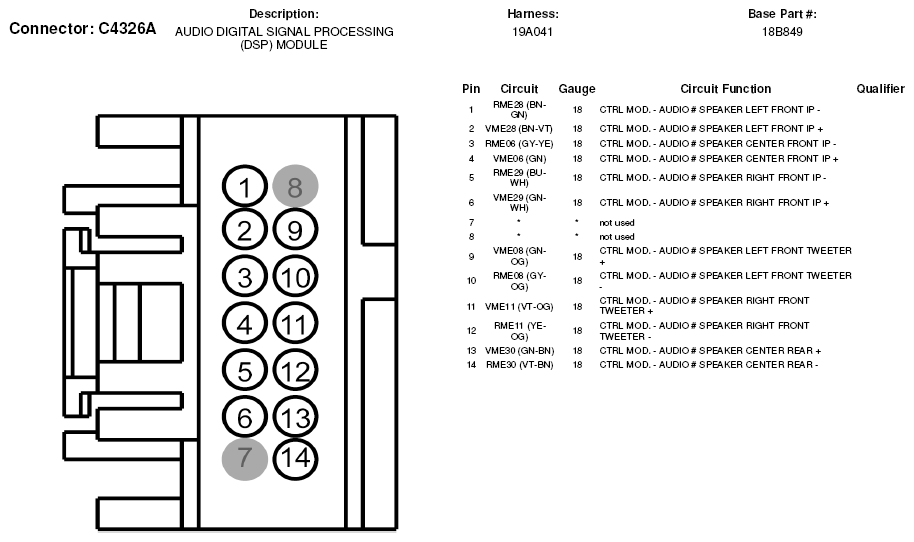

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326A)

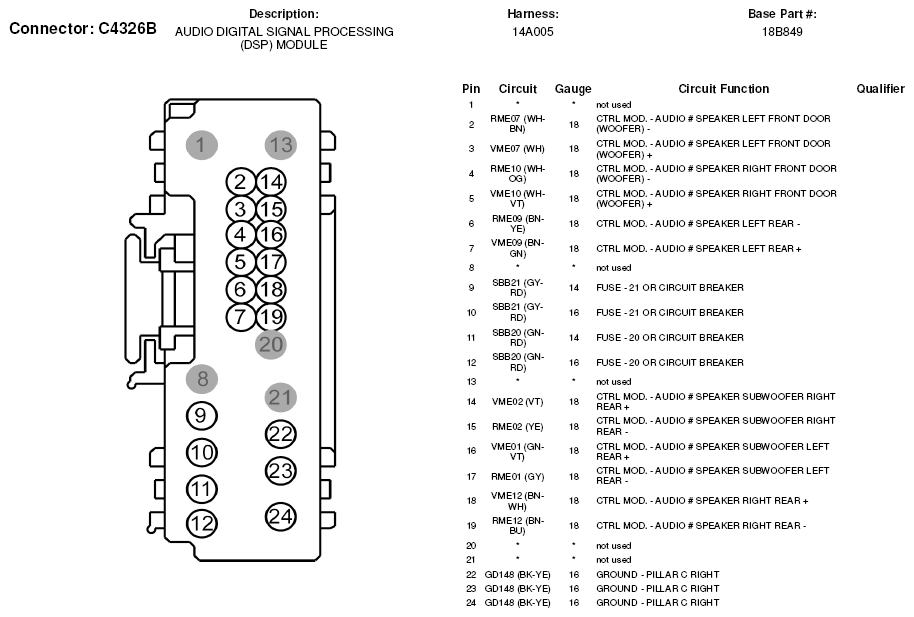

Fig 2: Audio Digital Signal Processing Module Connector End View (C4326B)

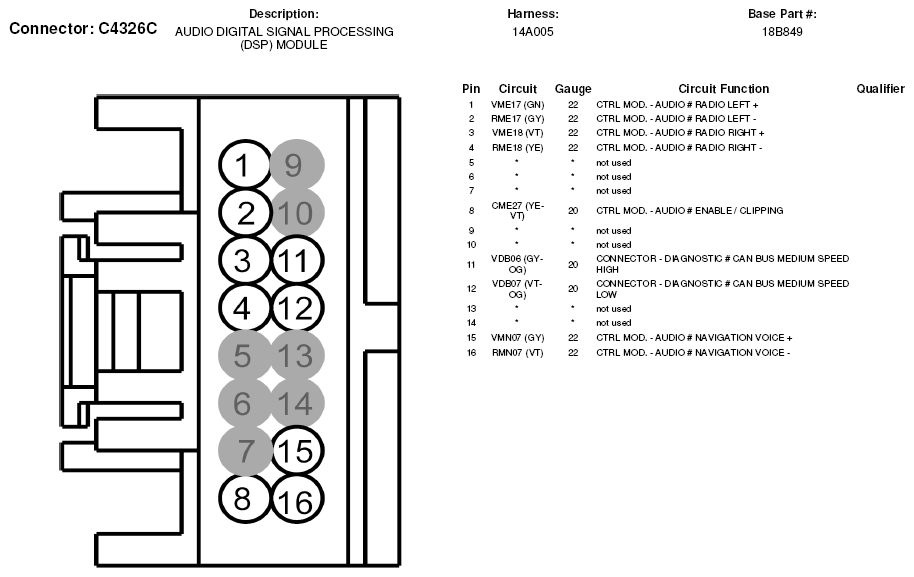

Fig 3: Audio Digital Signal Processing Module Connector End View (C4326C)
